This project is a turnkey project, including but not limited to the design, manufacturing (procurement), integration, assembly, transportation, positioning, installation, commissioning, training, and pilot running of the warehouse + laser + robot bending automated production line.

The production line meets the concurrent linkage of multiple equipment, completes sheet metal to sheet metal operations, realizes automated production requirements, and improves the overall automation of the production system. The purchased products of this project are automated material warehouse (3 * 1.5 meters * 12 layers * 3 tons, stainless steel sheet thickness 0.8-8 mm), truss loading and unloading equipment (supporting corresponding manipulators), 6KW (3 * 1.5 meters countertop) laser plate cutting machine, automatic bending unit, with automatic bending manipulator, a set of central control system, the blanking sheet meets stainless steel, the thickness is 0.8~ 8mm, and the maximum format size is 3000x1500mm. Sorting and unloading docking automatic bending unit. It is required to achieve automatic sorting and unloading and manual sorting. This equipment is mainly used for sheet material cutting and bending.

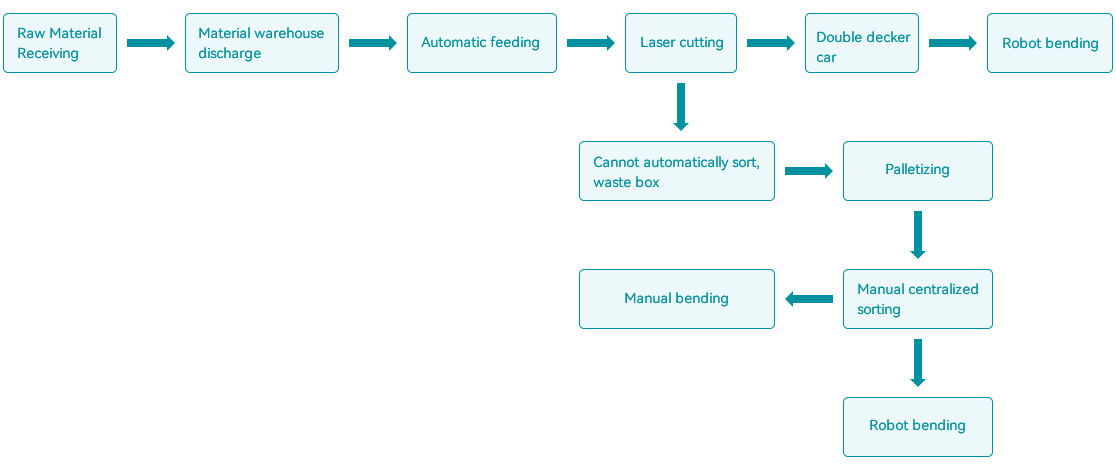

Production process flow chart

3D map

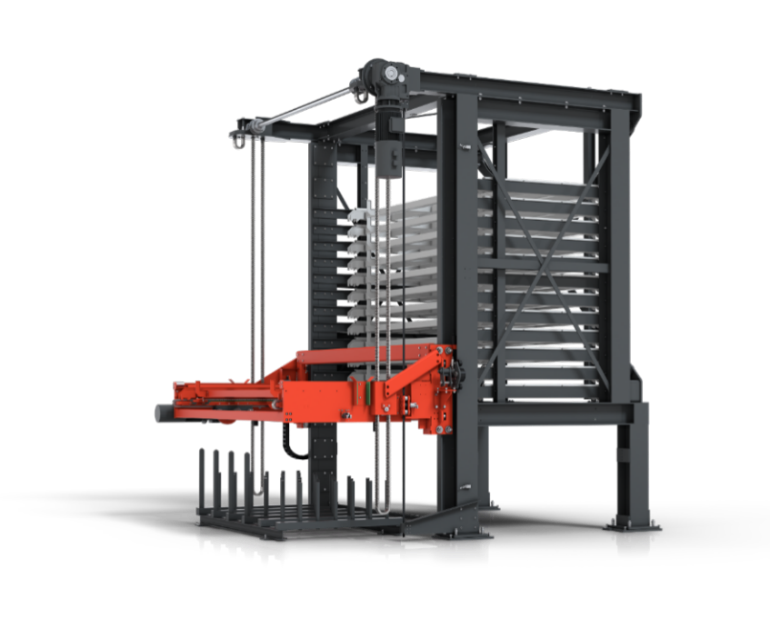

3D drawing of three-dimensional material warehouse

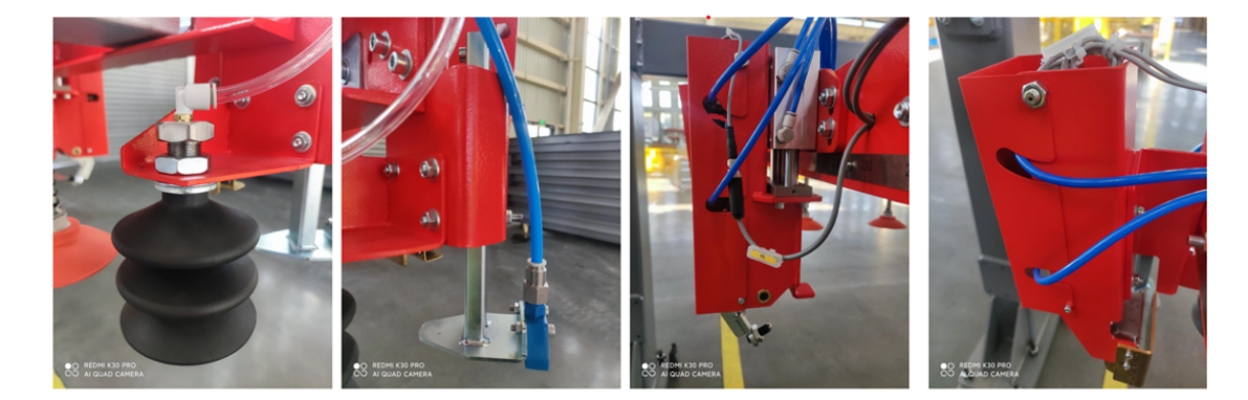

Sheet metal stratification and double material testing

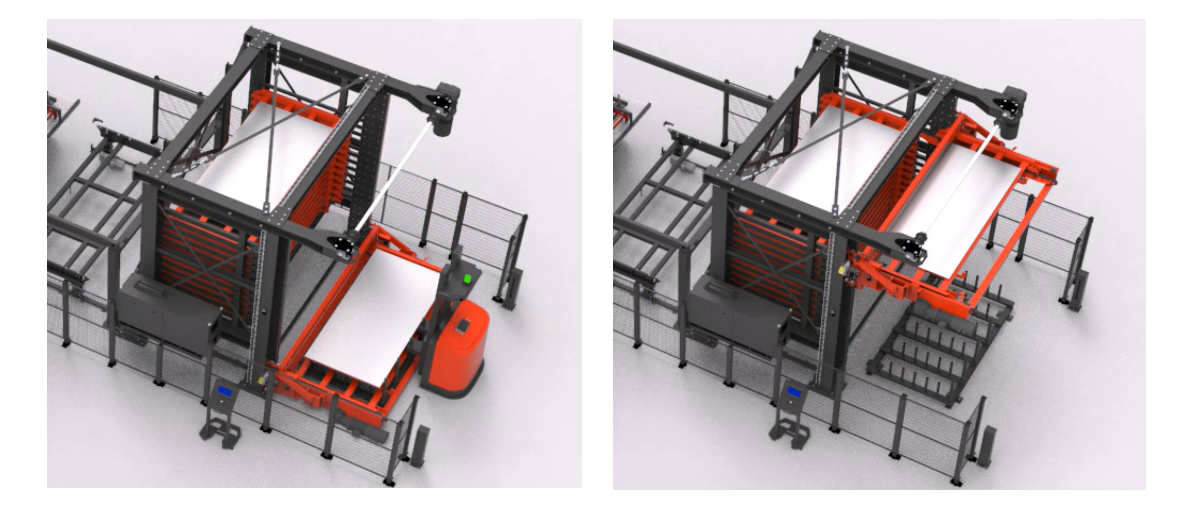

Raw material warehousing

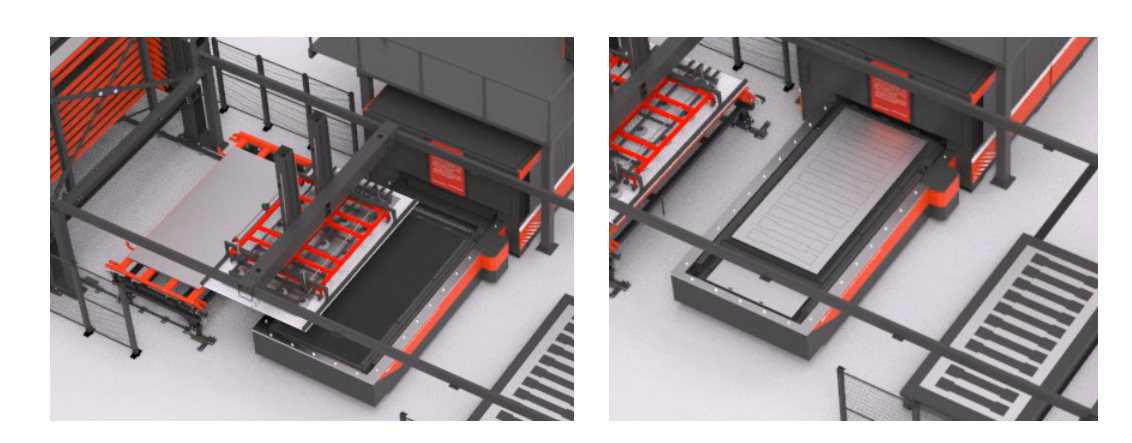

Automatic feeding and laser cutting

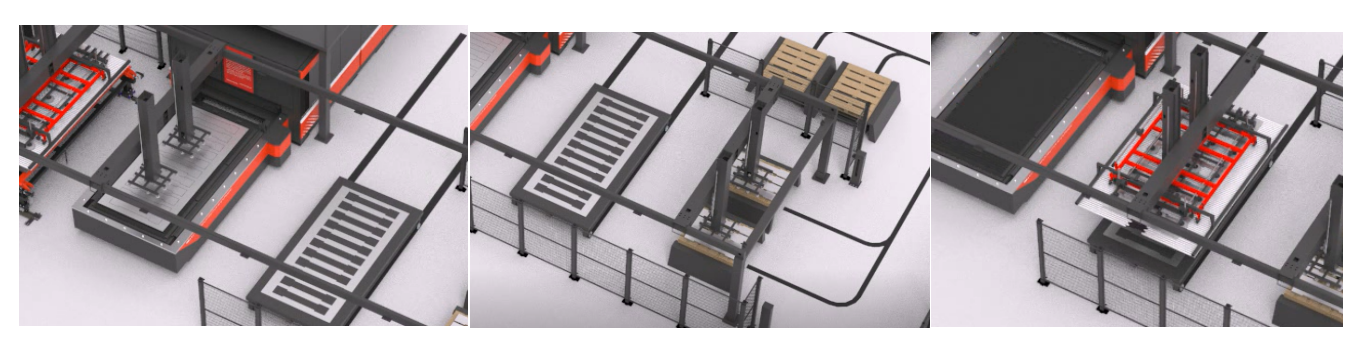

Automatic sorting

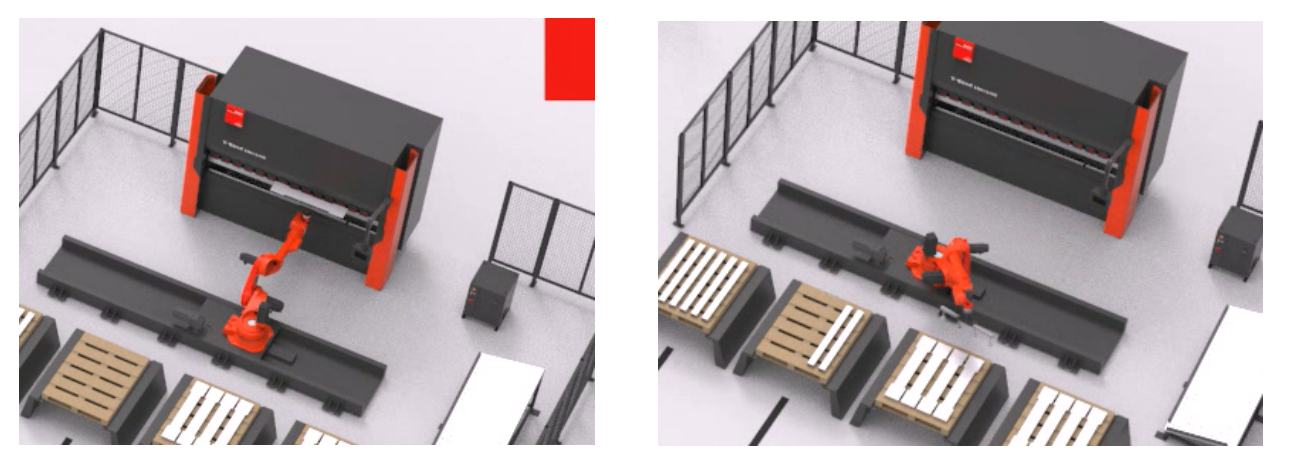

test automatic bending

Automatic sorting robot

(Pictures are for reference only)

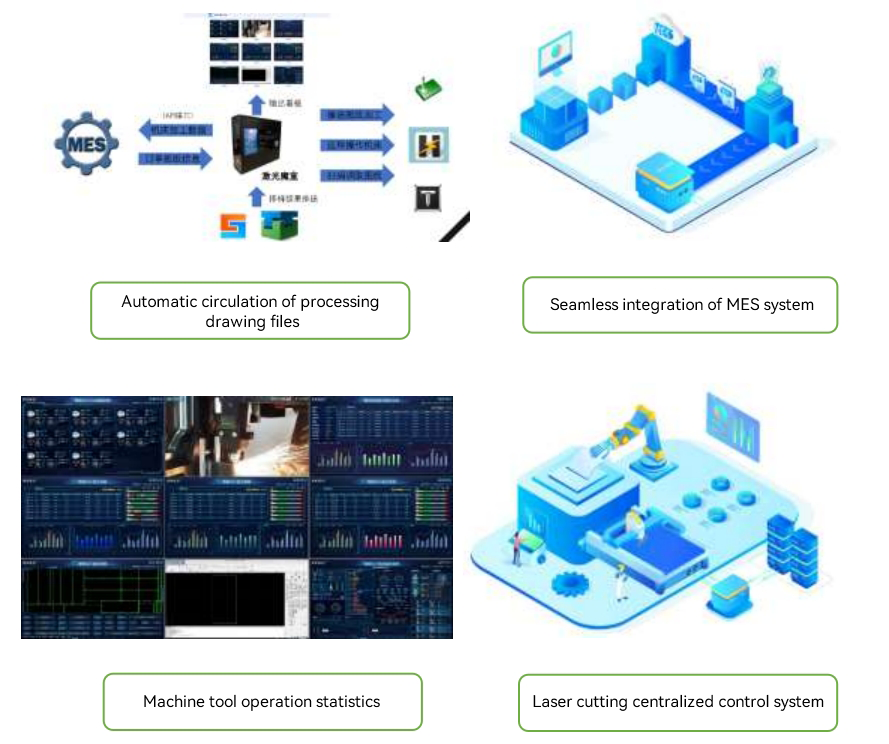

Equipment operation and fault monitoring to improve production efficiency

The laser magic box is independently developed by Control Soft Network and serves the intelligent hardware of the laser industrial Internet platform.

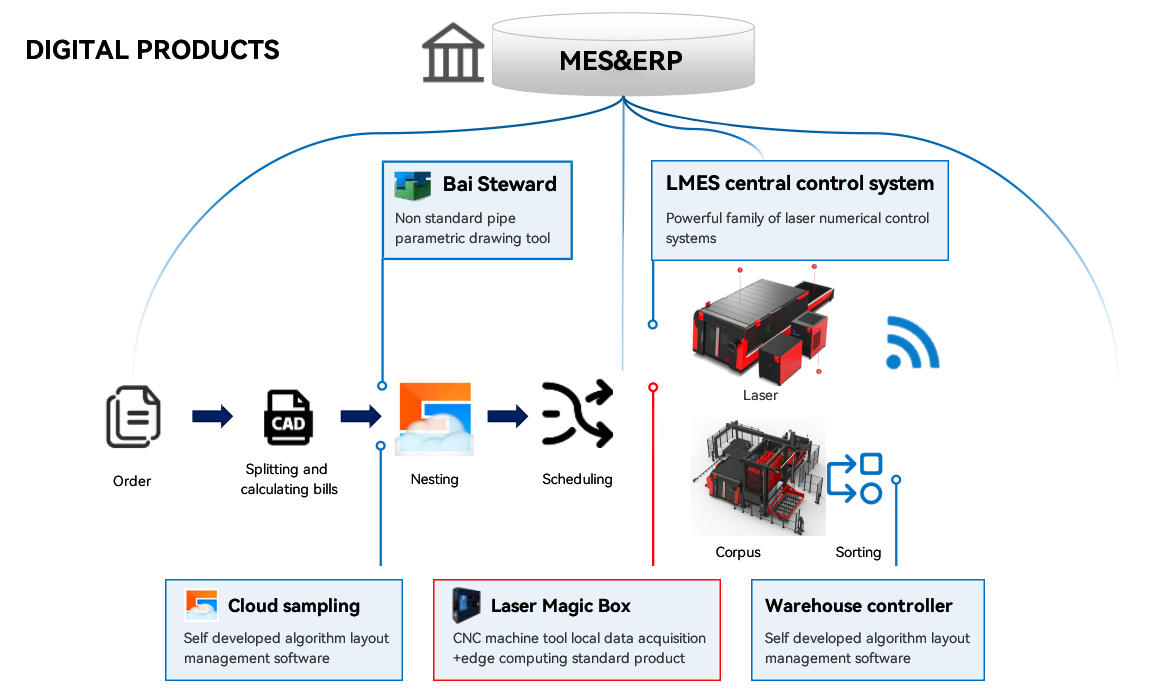

Digital products (optional)
