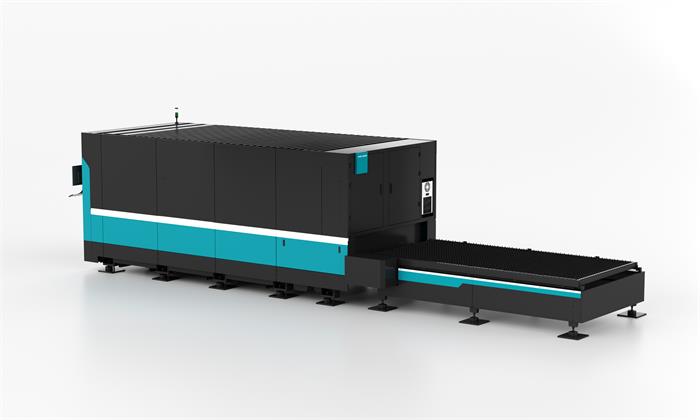

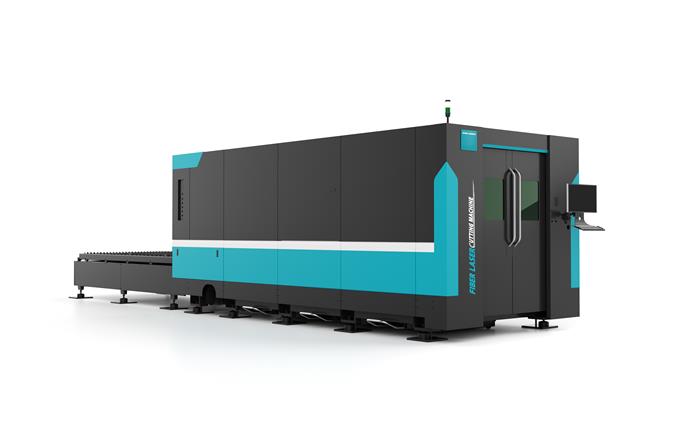

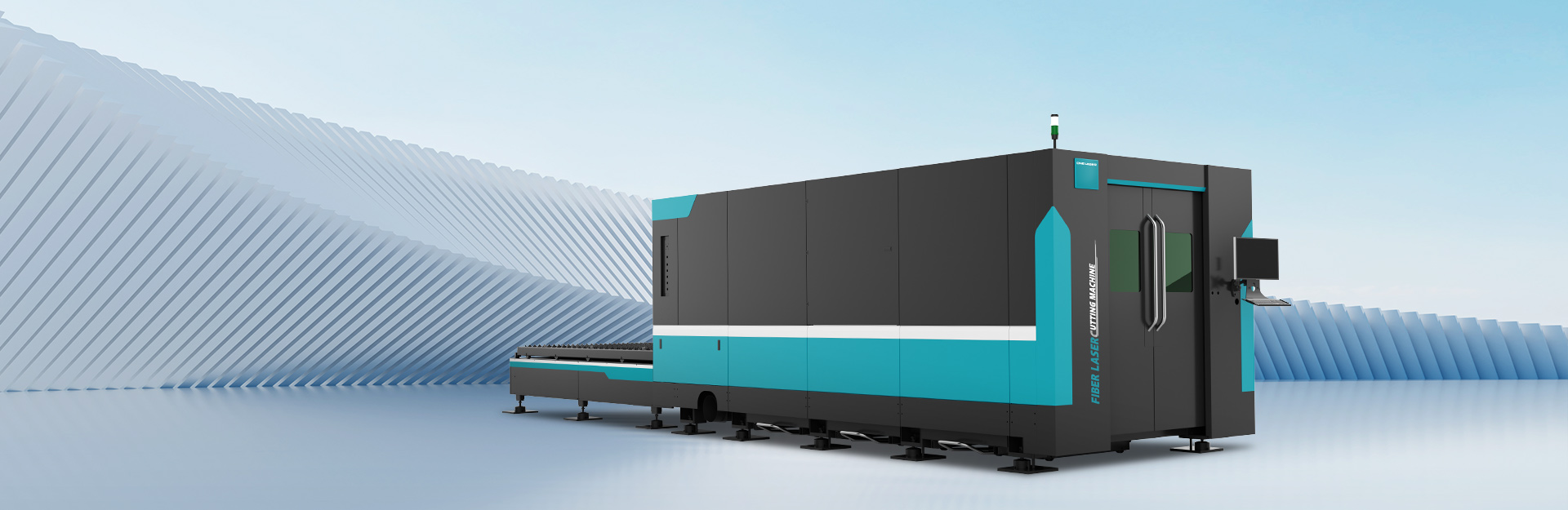

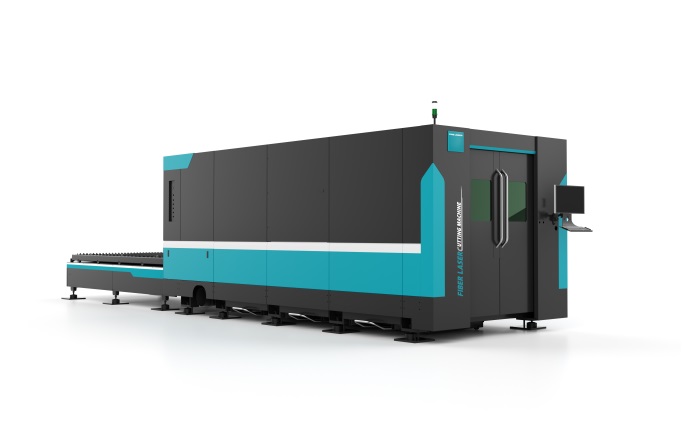

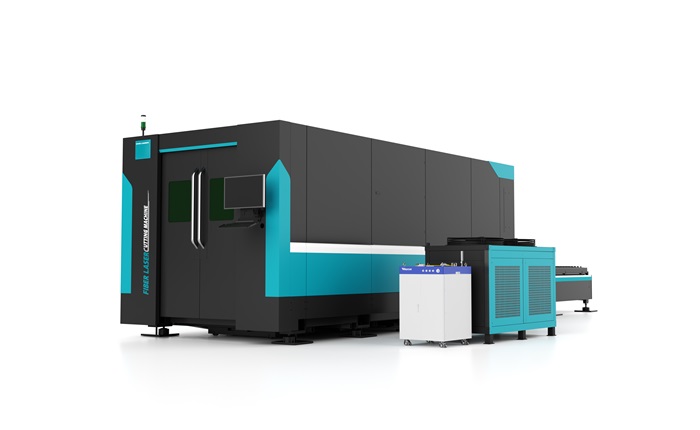

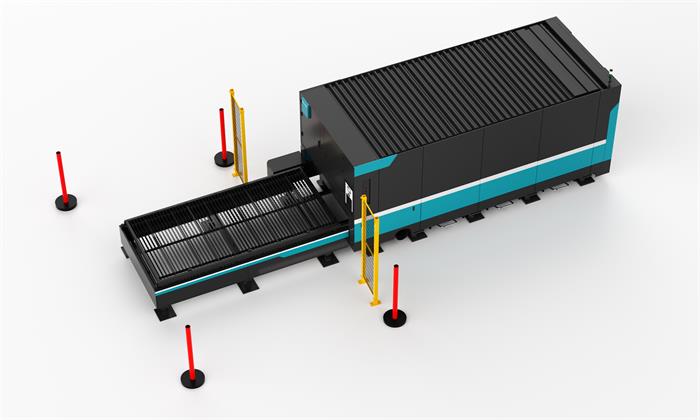

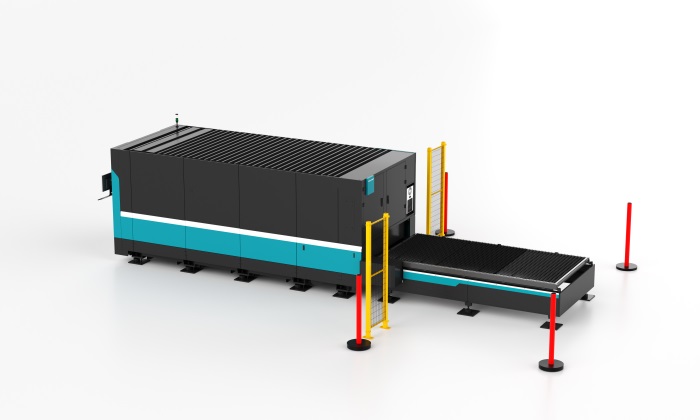

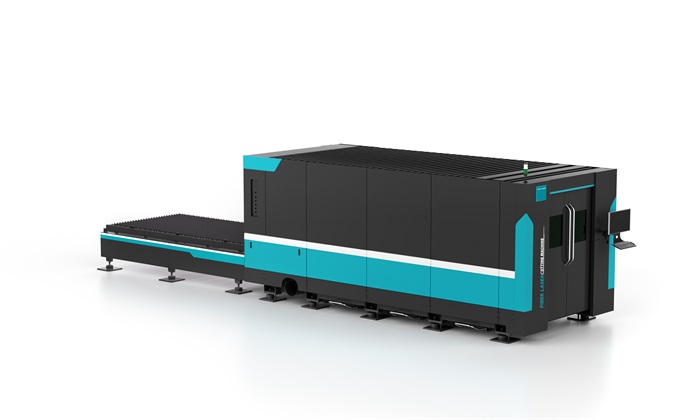

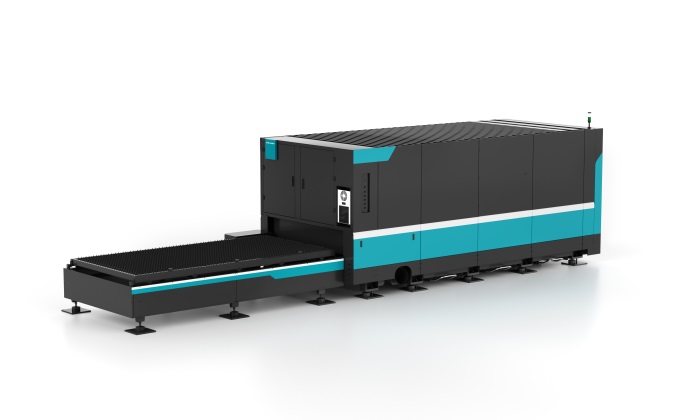

Ultra-High Power Fiber Laser Cutting Machine

Add to List

Product Comparison

Home·Products·D-Power

Product Description Product Features Technical Parameter Service Support FAQ Solution Related Products

Add to List

Product Comparison

Get a Quote

Product Description

D-Power Ultra-High Power Fiber Laser Cutting Machine, designed and optimized by the DNE LASER technical team, boasts a robust structure, premium imported components, and intelligent software. It delivers exceptional performance in metal plate processing, achieving high precision and speed coupled with user-friendly operation. Furthermore, it precisely handles a wide range of metal materials of varying thicknesses while maintaining a competitive cost advantage.

Product Features

Self-developed optical patent cutting head.

European workmanship standard machine table.

High-precision temperature and humidity control system.

Maximum power up to 30,000W, cutting ability ranges from 0.8 to 80mm, widely used.

Maximum linkage speed up to 150 metres per minute, maximum acceleration up to 1.5G, which allows customers to greatly improve production efficiency and reduce the cost of production per piece.

Coupled with intelligent functions, such as re-production of residual material and visual edge finding, helping customers to reduce non-productive time and material waste.

Equipped with a new high-performance laser generator, it can provide a higher energy density spot, which greatly improves the cutting speed of thin and medium plates.

Technical Parameter

Laser Source	Fiber Laser Source(optional)
Format(Customizable)	1530 2040 2560 2580 25120
Laser Power	3000W 6000W 12000W 20000W 30000W
X/Y axis linkage maximum acceleration	1.5G
X/Y axis linkage maximum positioning speed	150 m/min
X/Y-axis positioning accuracy	±0.05mm
X/Y-axis repeated positioning accuracy	±0.03mm
Power Consumption of complete Machine	≤30kW ≤40kW ≤65kW ≤95kW ≤140kW
Bevel cutting function	Beveling Function：Available only on D-Power2560/2580/25120; processing restricted to upper worktable.
