Product Description

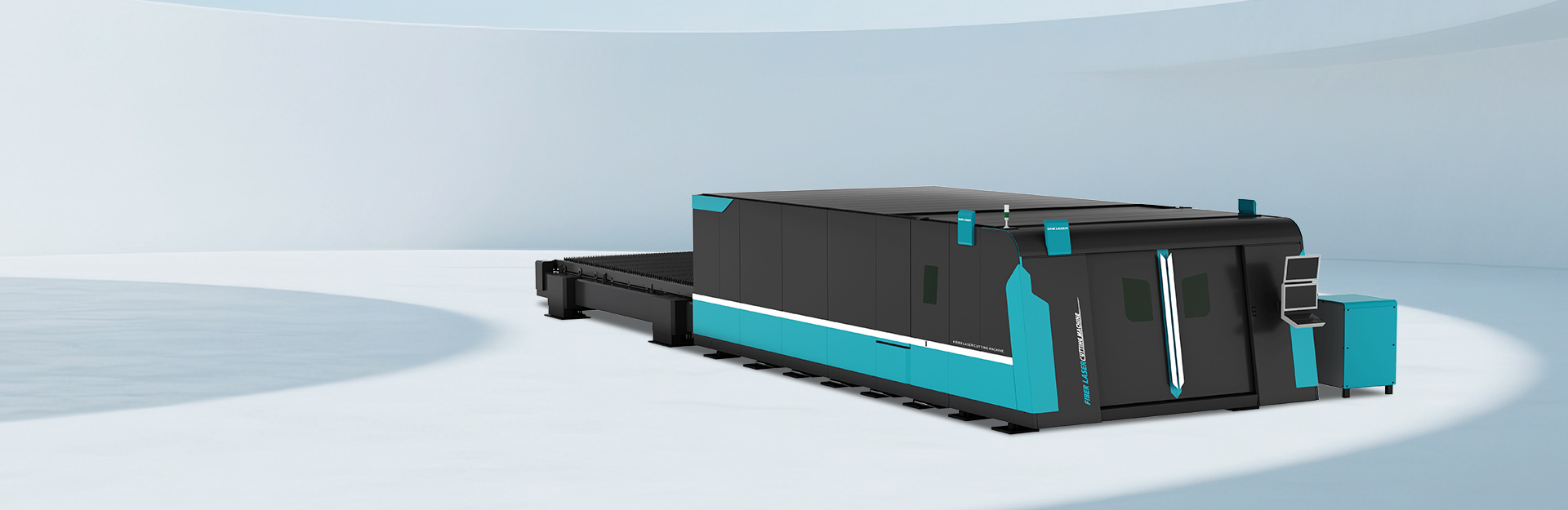

D-Soar Plus-PG ultra-high power ﬁber laser cutting machine is specifically configured for high-end customers, and the whole machine is designed and debugged by DNE LASER. The main components are imported, delivering higher cutting accuracy, faster speeds, easier operation, lower operation costs and wider cutting material range. By ingeniously adding two rotating axes to the conventional laser cutting head, the angle range is expanded from 1° to ±45°. This innovative feature enables the creation of various slope shapes such as V groove, Y groove, and X groove. These advancements not only facilitate thick-plate welding and streamline workflows but also significantly reduce time and labor costs.

Product Features

Fully enclosed protective cabin meets national safety standards.

Feature the capacity for ±45° bevel cutting, supporting V, X, Y, and K bevel types.

Accurate control of gas consumption,with low use cost and quick return on investment.

Safe and reliable active defense system, anti-collision protection, intelligent stroke control and intelligent alarm function.

Customized bus control system, integrated high-efficiency nesting software,cutting program will be faster and more convenient.

Equipped with high-torque servo motor and high-precision imported reducer,with high efficiency, good dynamic characteristics, and high cutting precision.

Technical Parameter

Product	D-Soar Plus-PG
Laser source	Fiber Laser Source
Format	2040 2060 2560 2580
Laser power	12000W 20000W 30000W
X/Y-axis Max. linkage acceleration	1.8 G
X/Y-axis Max. linkage positioning speed	180 m/min
X/Y-axis positioning accuracy	±0.05mm
X/Y-axis repeated positioning accuracy	±0.02mm
