In order to meet the production needs of intelligent manufacturing in enterprises, the whole production line is designed with the concept of intelligence, automation and unmanned, combined with international advanced equipment and production experience, and taking into account the current domestic production status, a set of automated and semi-automated production lines is specially made for enterprises. On the basis of ensuring the business continuity and advancement of the business system, through scientific and reasonable planning and design and resource allocation and scheduling, the project goal is achieved with minimal economic investment as much as possible, so as to effectively control the overall cost of the project.

This program aims to improve the efficiency of customer sheet metal processing, in the batch of repetitive processes, mainly automated equipment, improve production efficiency, reduce personnel costs and management costs; in the connection of each process, first replace high cost collaborative software with labor, and complex tooling. With a unified standard system interface and communication protocol, the system can be compatible with similar equipment, and at the same time can adapt to the development of new technologies in the future. Hardware equipment adopts advanced level equipment and parts, and through advanced management experience and processing level, the performance and stability of the equipment supplied to users have reached the most advanced ranks in China.

According to customer requirements, this project is a smart factory project, with multi-column warehouse materials as the center to support laser automation, punch automation, safety guardrail, etc. The key components of the equipment are selected from foreign or Taiwan products, and the quality is guaranteed. Adopting teaching programming method, the operation is simple and easy to learn, and it can conveniently realize functions such as automatic loading and unloading.

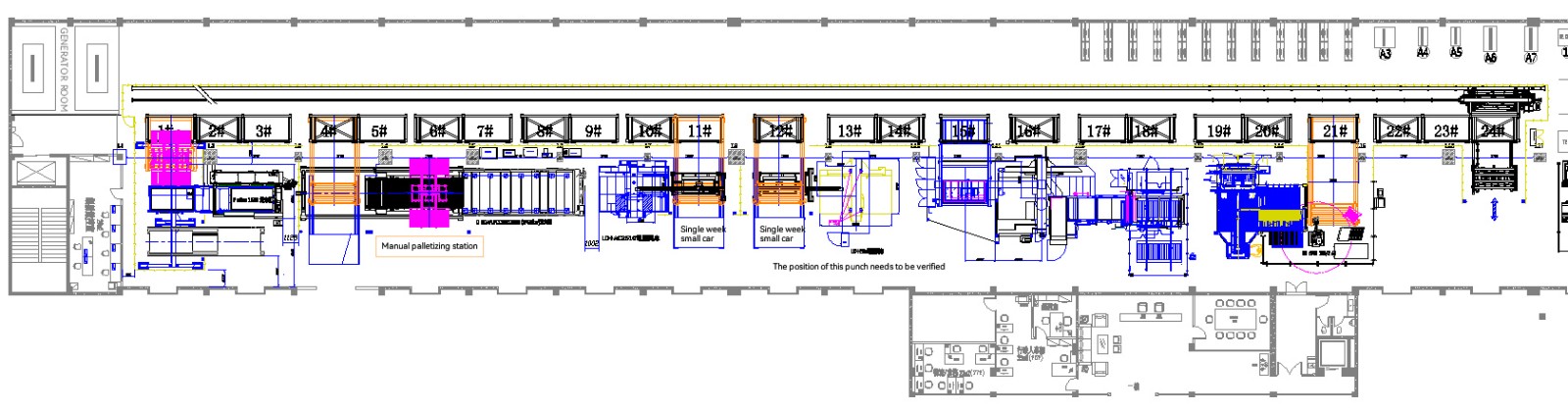

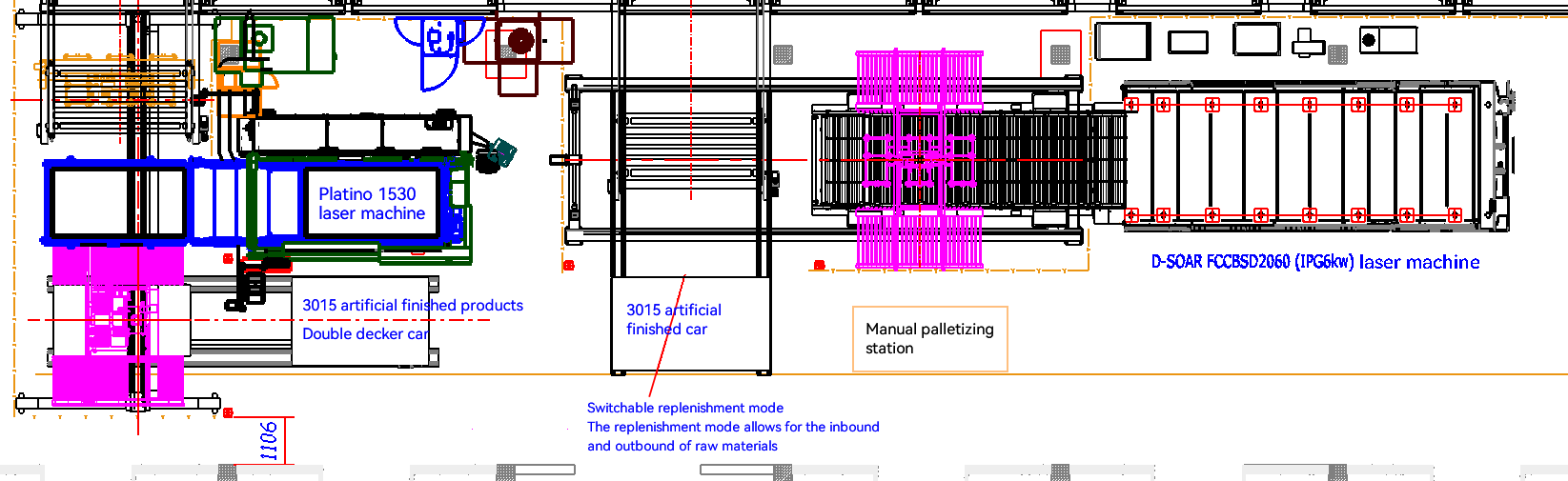

layout

Overview of Multi-column Storage Unit Scheme

This automation system is designed and developed according to customer needs, and can realize fully automatic intelligent warehousing (automatic warehousing, automatic outbound, laser cutting unit feeding) and laser cutting (automatic loading and unloading). By building an intelligent production system and networked distributed production facilities, the whole process of cutting is digitized and intelligent. The whole system has a good operation interface, which is convenient for operators to use.

The smart factory emphasizes that on the basis of the unified information management system within the enterprise, it can connect with the client side MES system, plan, schedule, produce, and achieve a high degree of matching between people and equipment. It can conduct real-time monitoring and data collection of the entire production process, organize production through data analytics, and allocate idle production resources more reasonably, improve production efficiency, and achieve mass customization production at a lower cost.

The automatic material storage consists of material tower, track stacker, inlet and outlet and special management software, which is connected with laser cutting unit and bending automation unit.

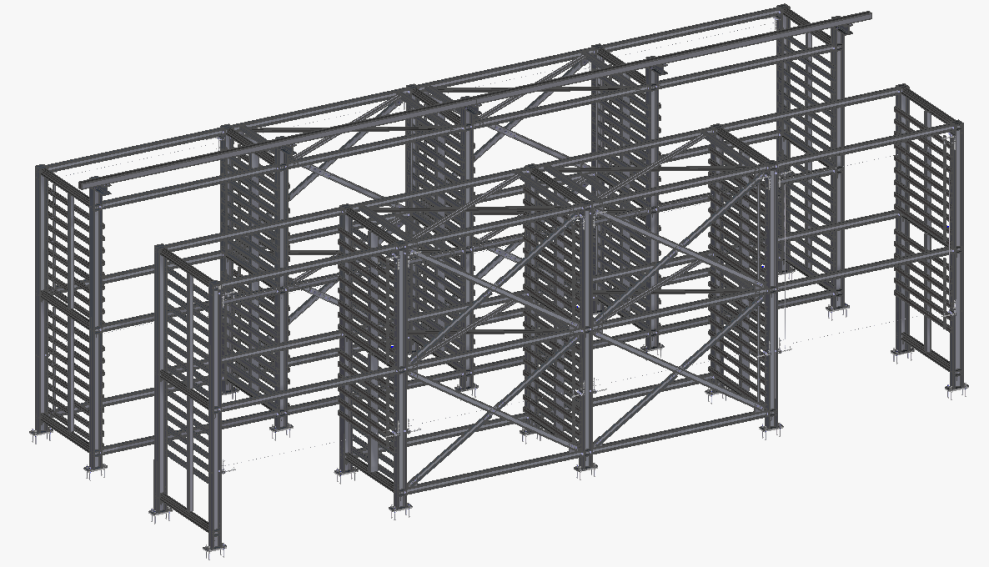

schematic diagram of the warehouse

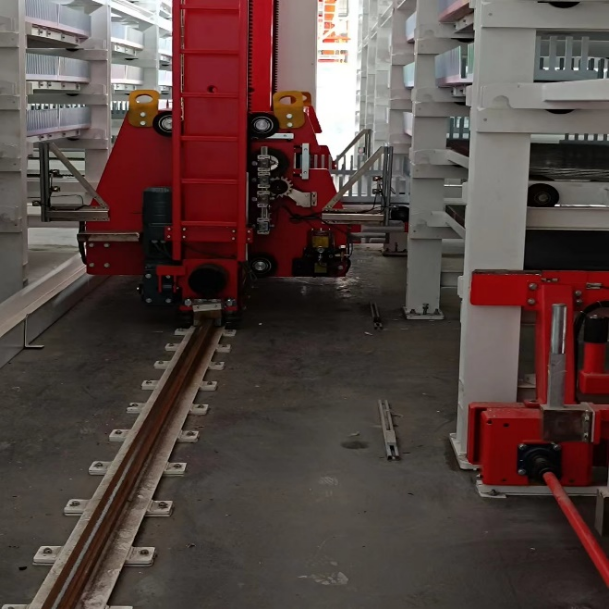

Schematic diagram of stacker

Schematic diagram of plate warehousing station

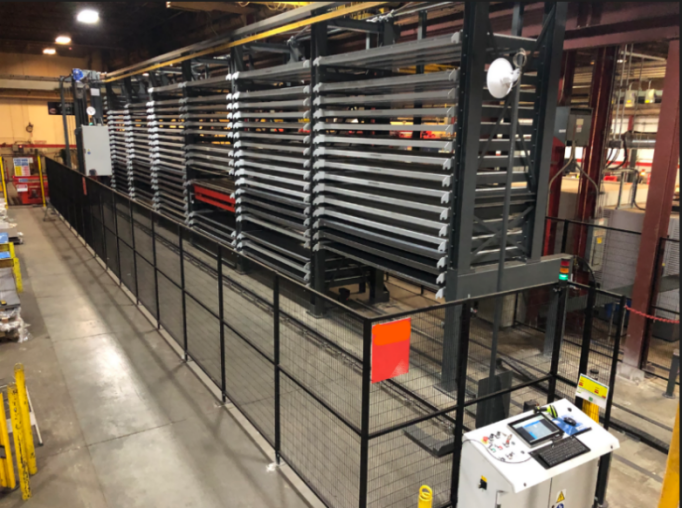

schematic diagram of safety protection

Scheme diagram of laser automatic loading and unloading unit

Process flow detail

According to the production plan, multi-column material warehouse workstations are used to centrally store and manage the plates and automatically send them to each laser cutting unit. The process flow is as follows: raw material warehousing --- material warehouse discharging --- automatic feeding --- laser cutting --- automatic unloading --- manual sorting

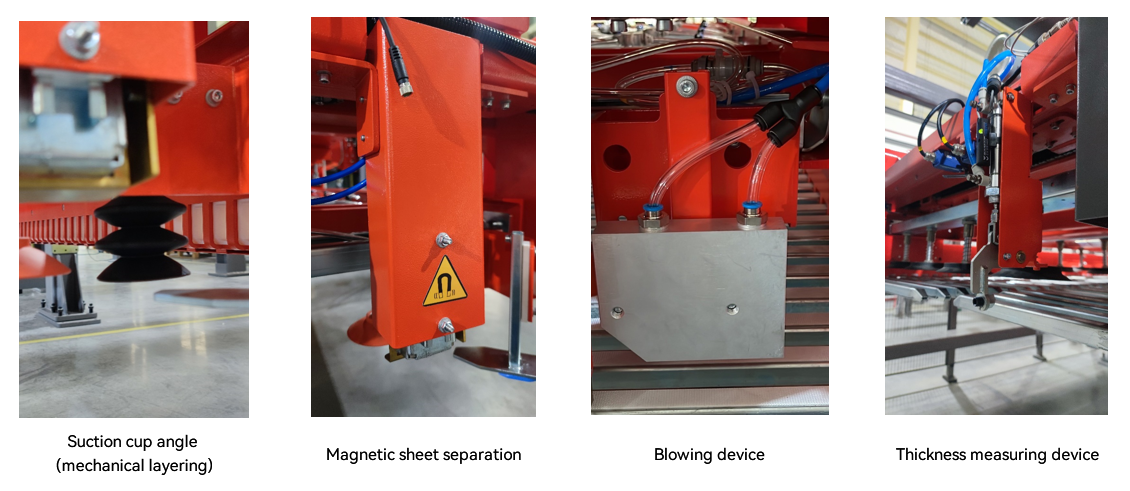

Reference diagram of main components of laser loading and unloading unit

loading and unloading composite tooling

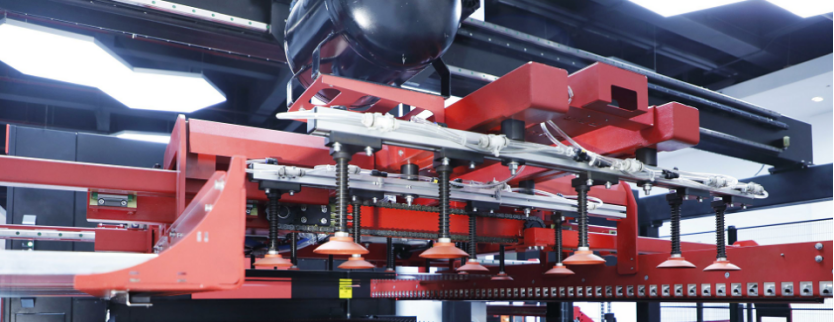

Vacuum suction cup feeding device (for reference only)

Numerical control turret punch automation unit layout

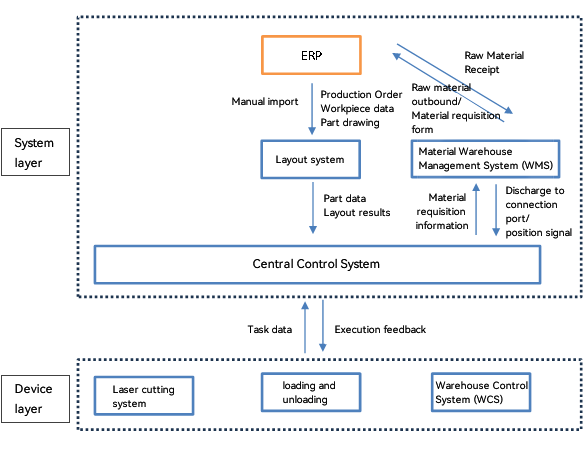

System Architecture Laser Cutting Information Flow

Other equipment processing information flow

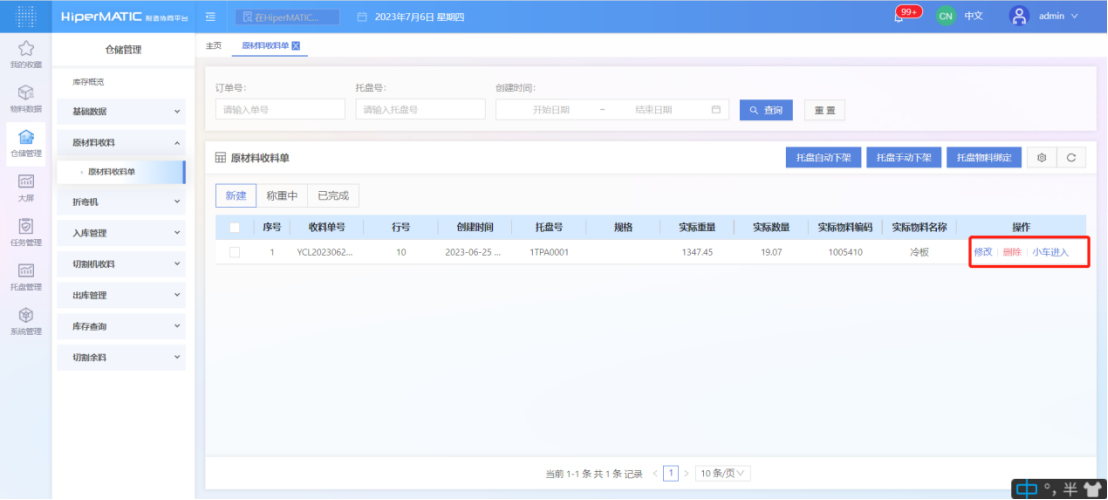

Graphic: Inbound Management

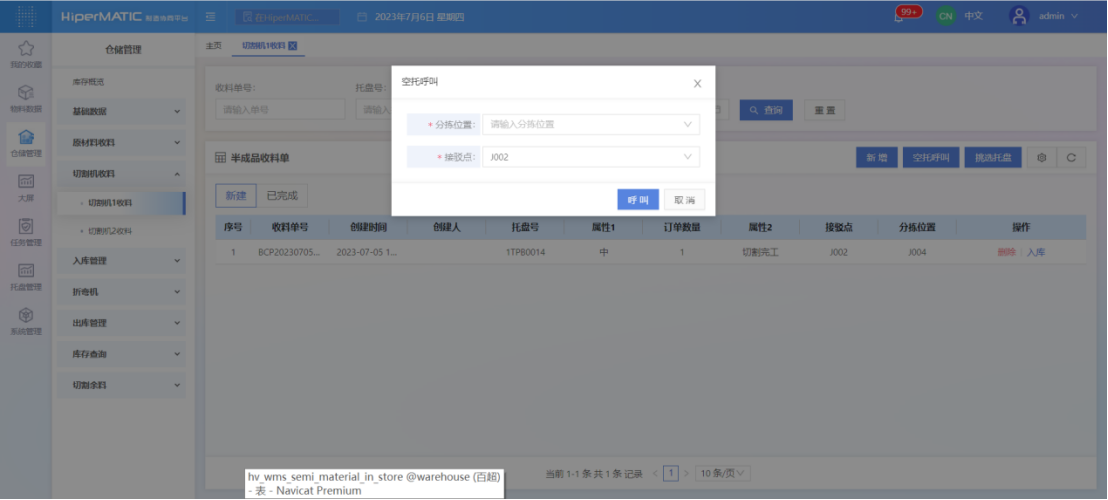

Figure: Outbound Management
