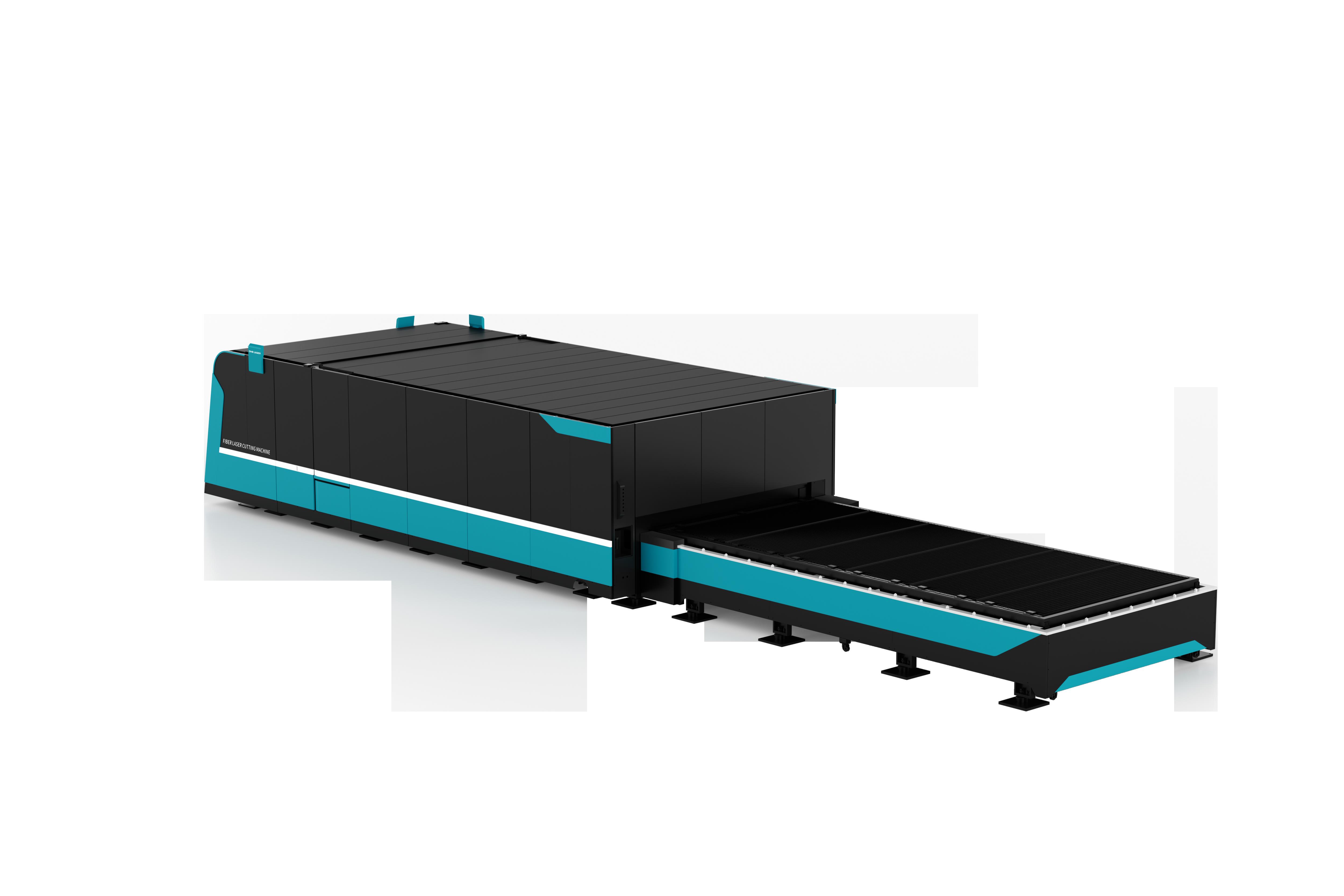

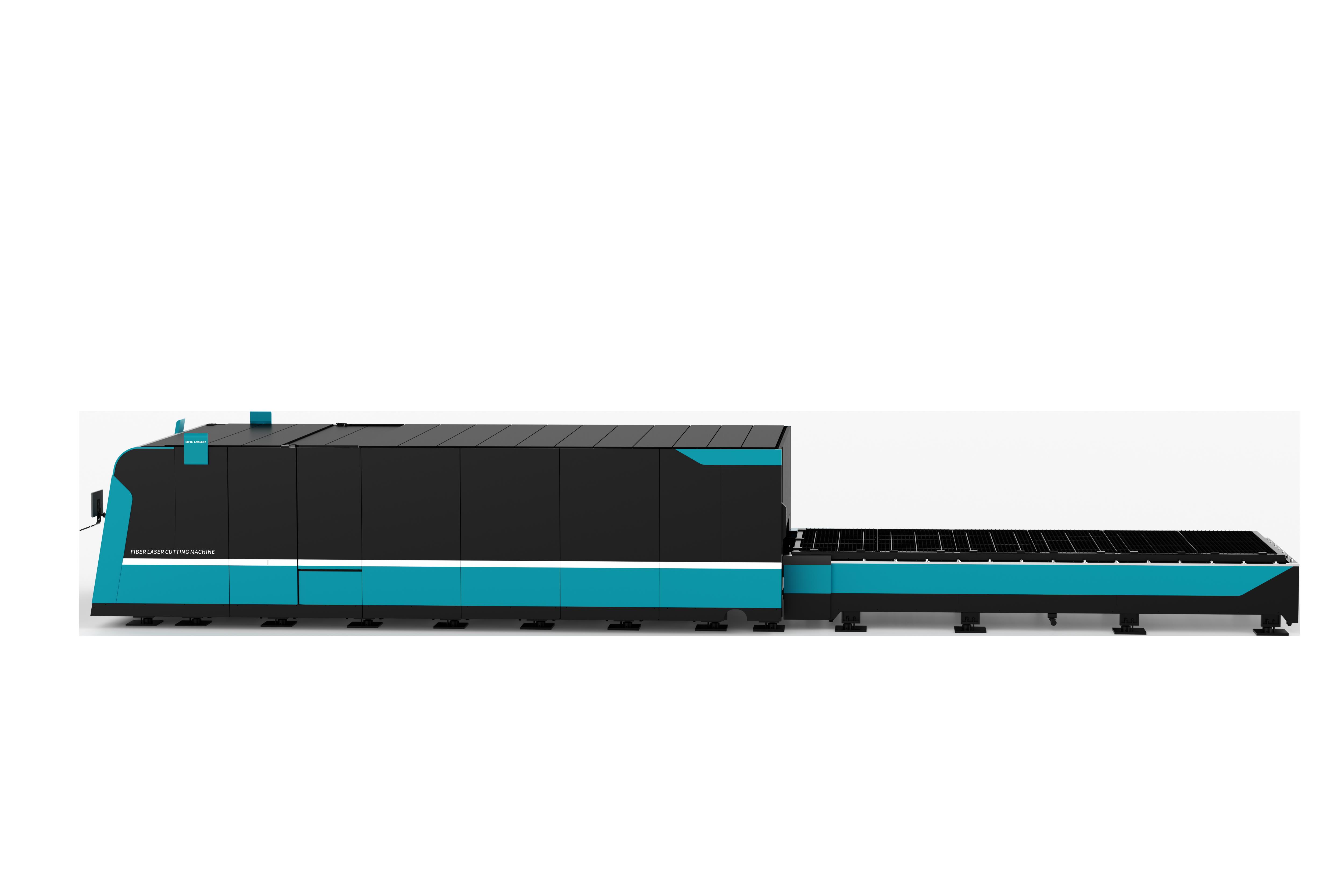

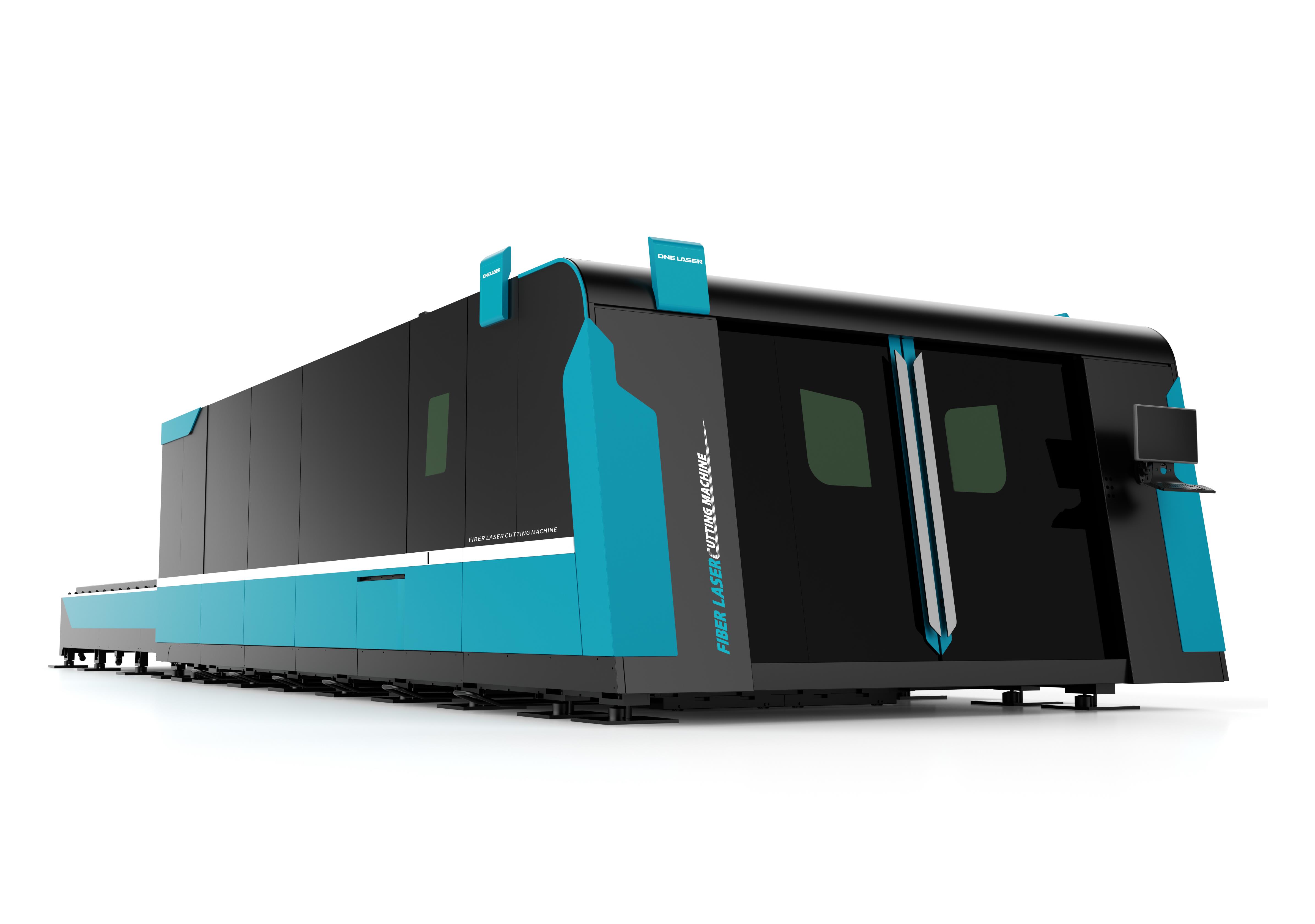

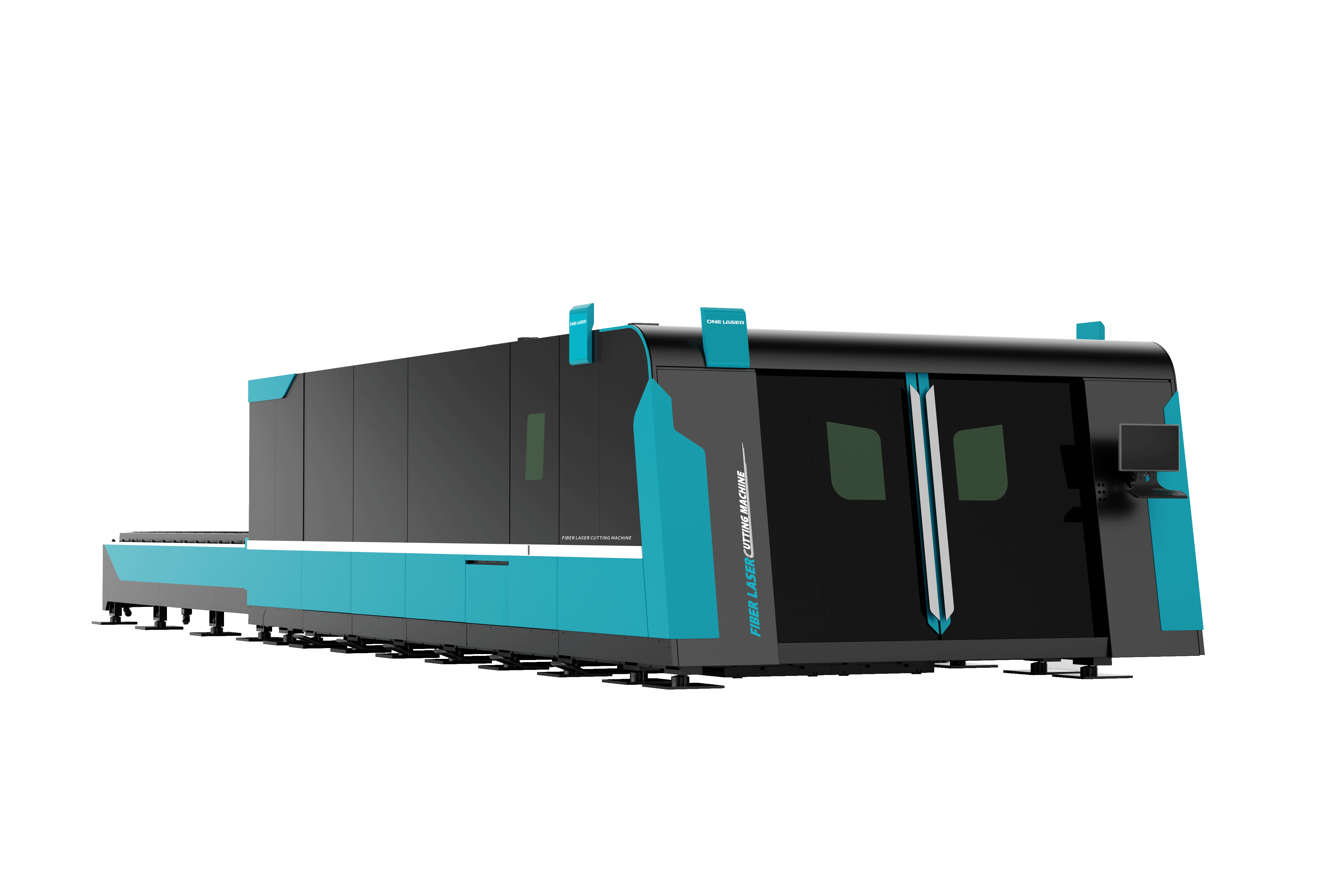

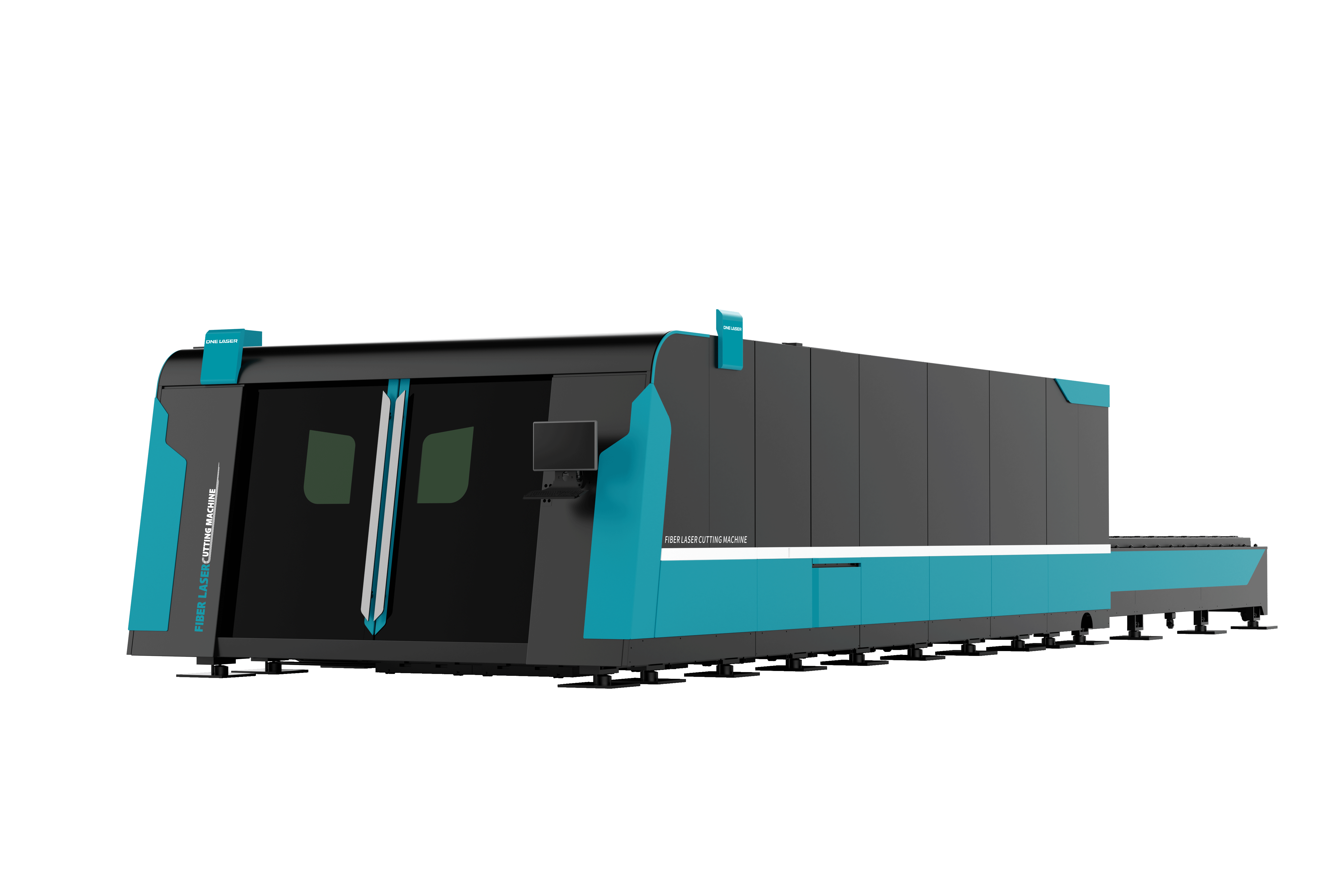

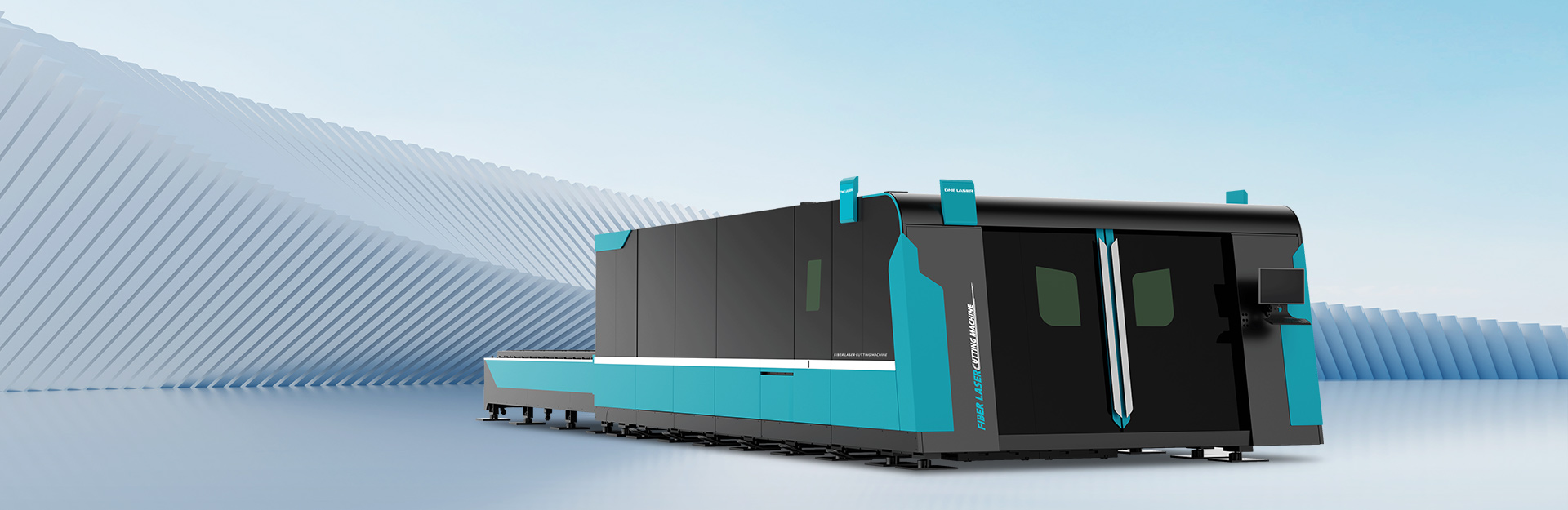

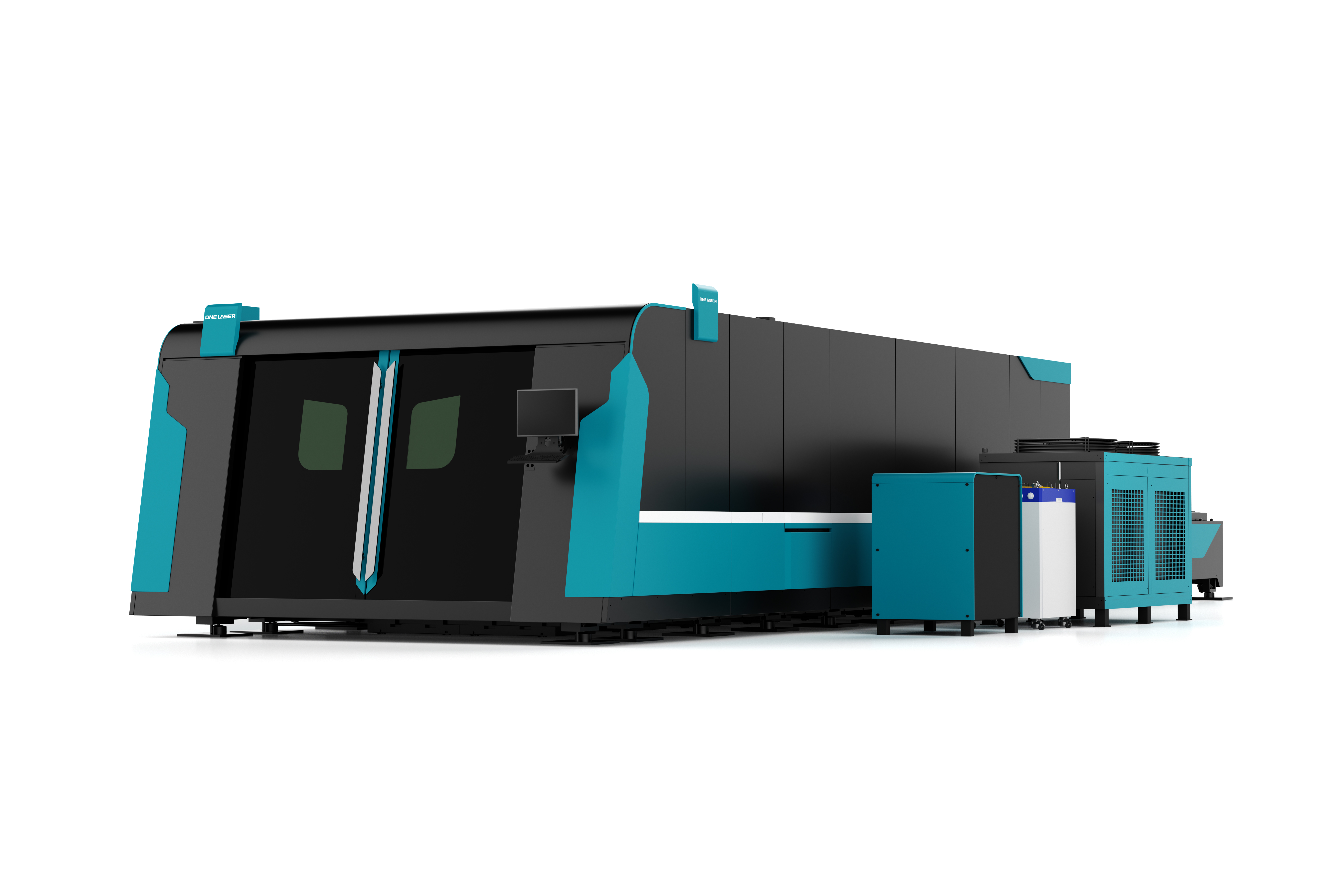

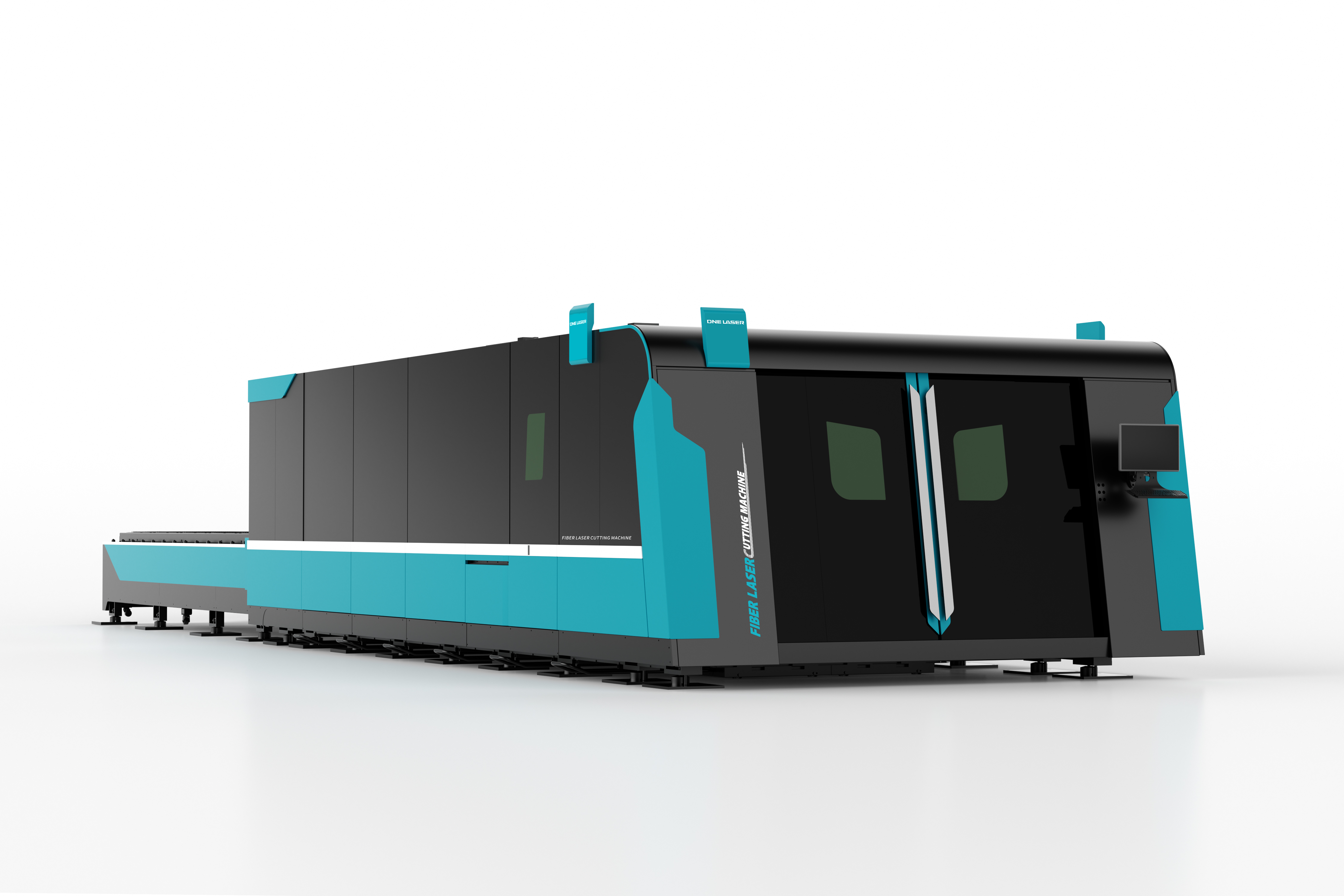

D-Soar

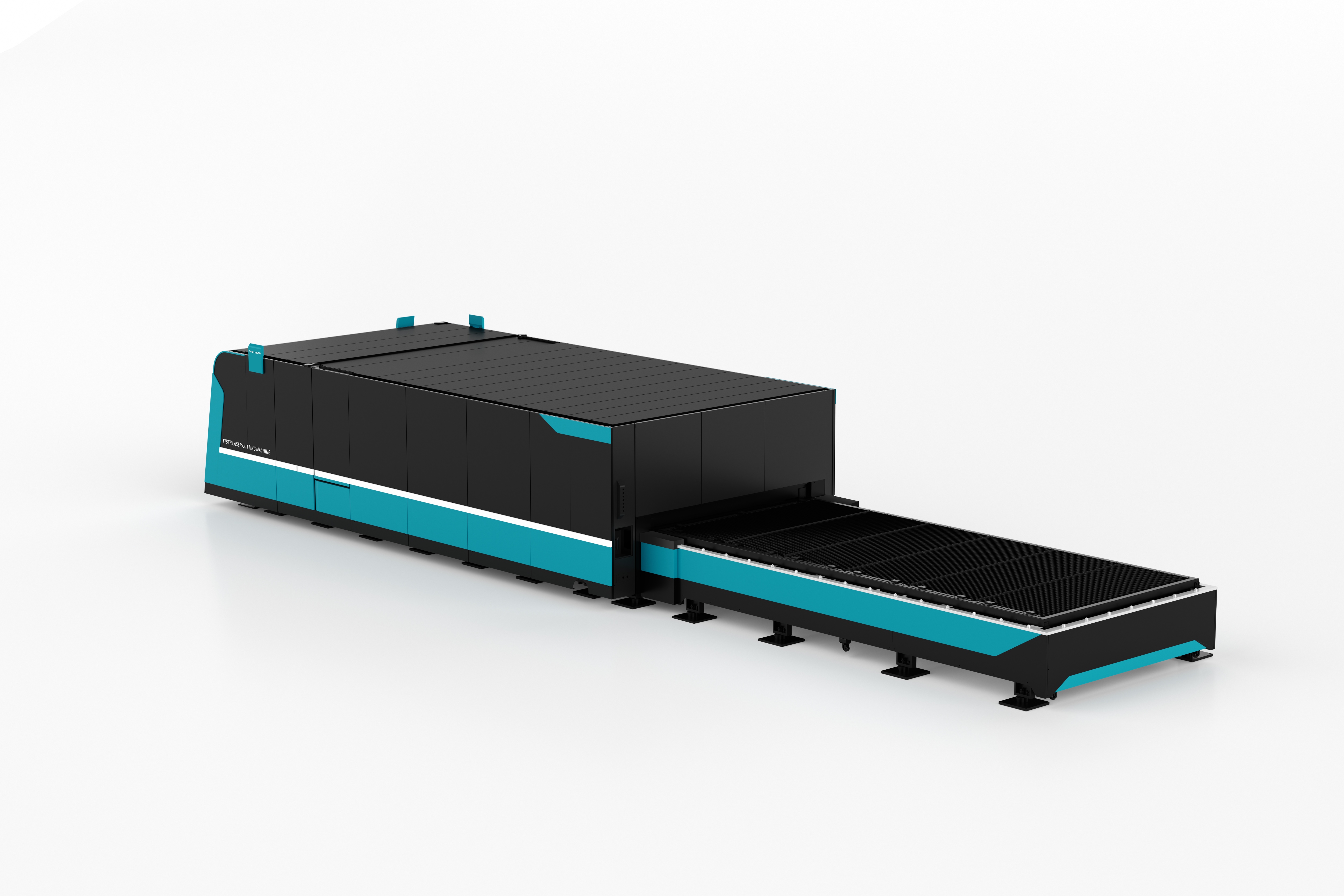

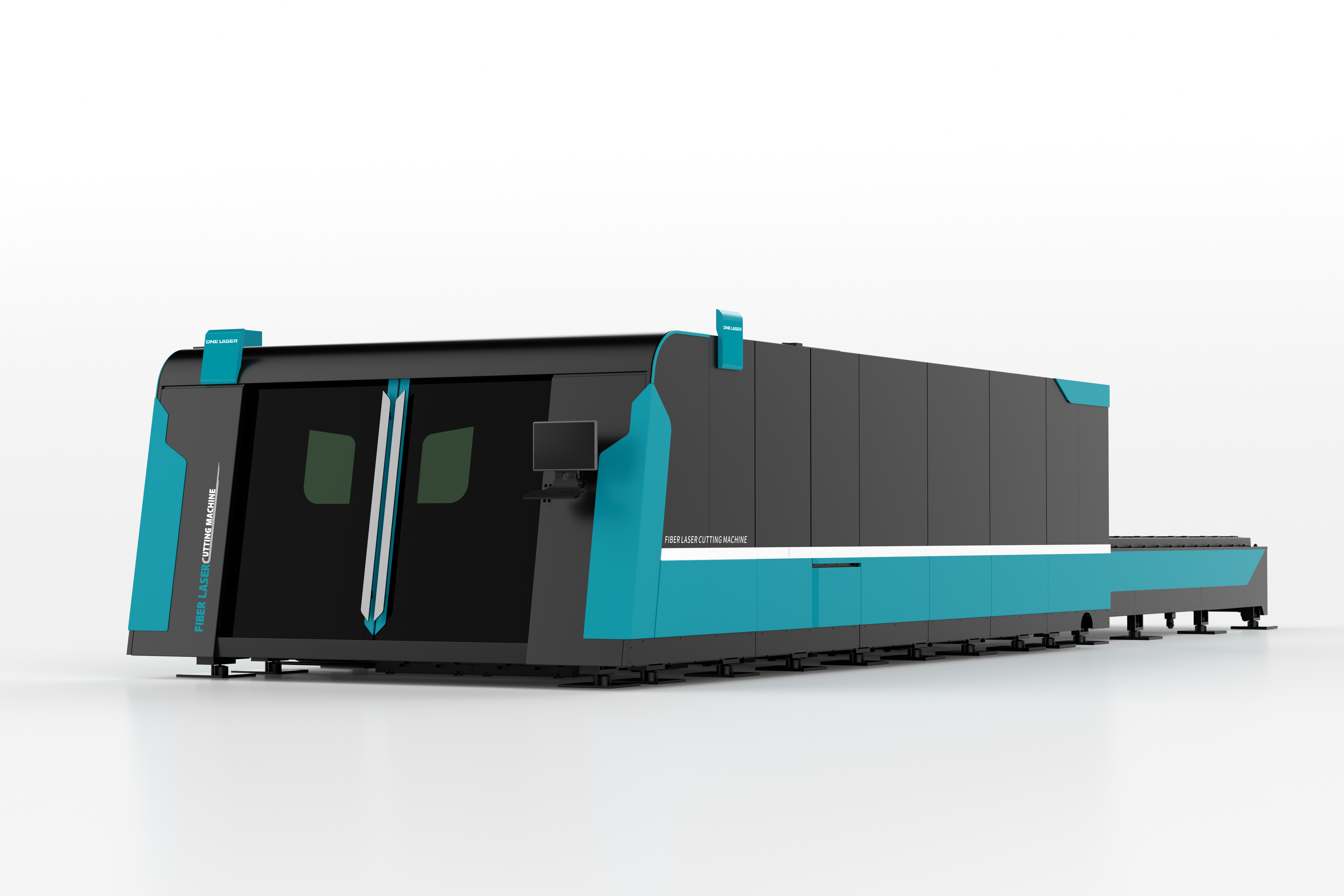

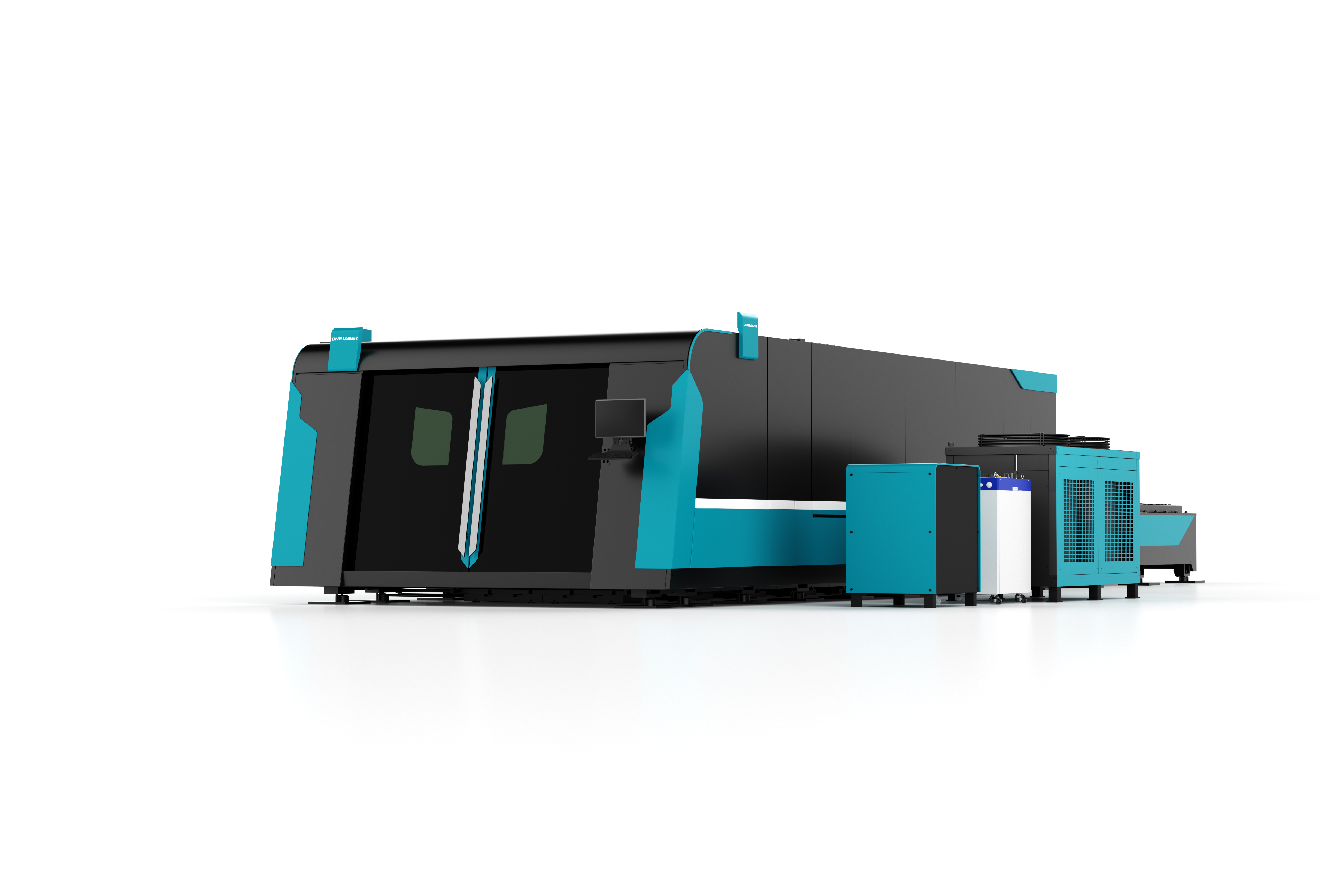

Ultra-High Power Fiber Laser Cutting Machine

Add to List

Product Comparison

Home·Products·Laser Cutting

Product Description Product Features Technical Parameter Related Products

Add to List

Product Comparison

Get a Quote

Product Description

The D-Soar Ultra-High Power Fiber Laser Cutting Machine, designed and debugged by the DNE LASER technical team, boasts a stable machine tool structure, high-quality imported components, and intelligent software. It delivers exceptional performance in metal plate processing, achieving high cutting accuracy and speed coupled with user-friendly operation. Furthermore, it can precisely process a wide range of metal plates of various thicknesses at a competitive cost.

Product Features

Side sliding door design with sensors.

Independent dust extraction channel design.

European workmanship standard machine table.

High-precision temperature and humidity control system.

Die-casting aluminum gantry, faster, more stable, higher accuracy, not easy to deform.

Self-developed core patented optical cutting head with higher stability, better cutting quality and faster speed.

Technical Parameter

Laser Source	Fiber Laser Source(optional)
Format(Customizable)	1530 2040 2060 2560 2580 25120
Laser Power	3000W 6000W 12000W 20000W 30000W
X/Y axis linkage maximum acceleration	1.2G
X/Y axis linkage maximum positioning speed	120 m/min
X/Y-axis positioning accuracy	± 0.05mm
X/Y-axis repeated positioning accuracy	±0.03mm
Power Consumption of complete Machine	≤30kW ≤40kW ≤65kW ≤95kW ≤135kW
