D-Tube 520
Heavy Duty Fiber Tube Laser Cutting Machine
Add to List
Product Comparison
Home·Products·D-Tube 520
Product Description Product Features Technical Parameter Related Products
Add to List
Product Comparison
Get a Quote
Product Description

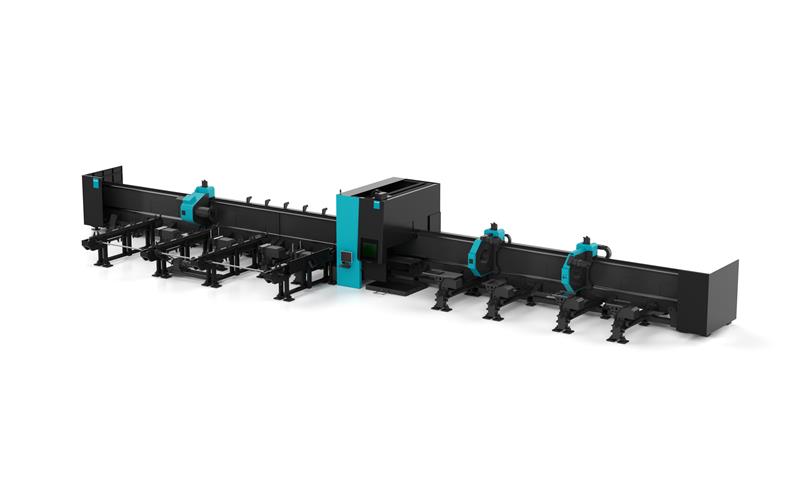

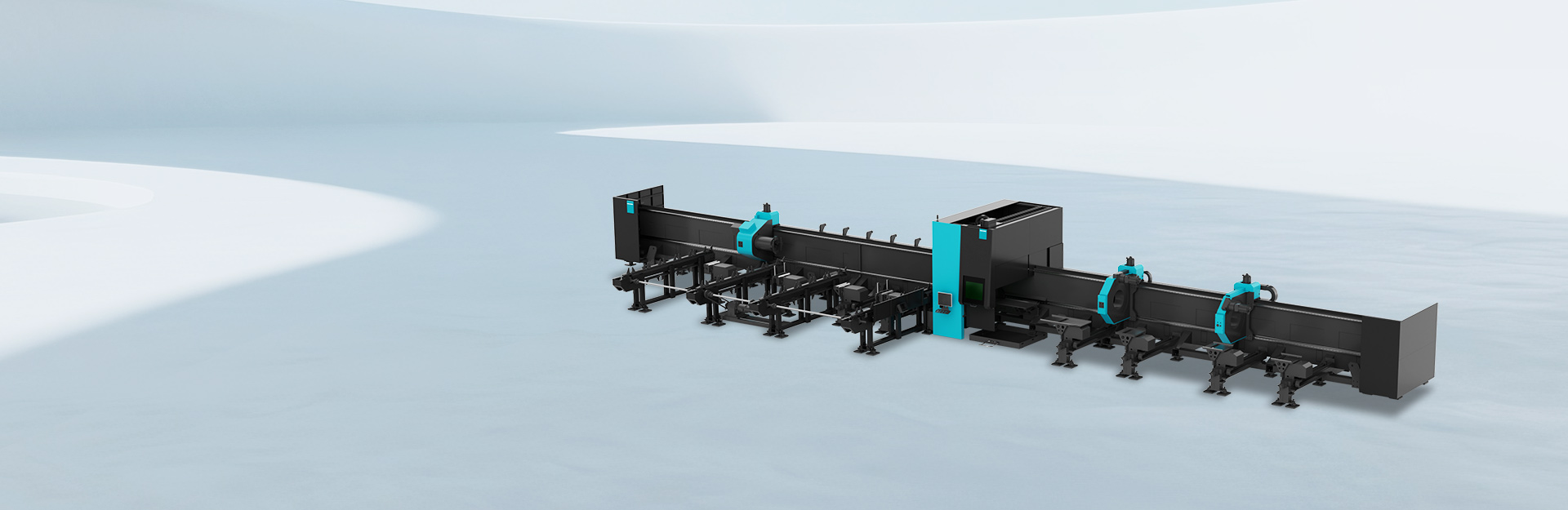

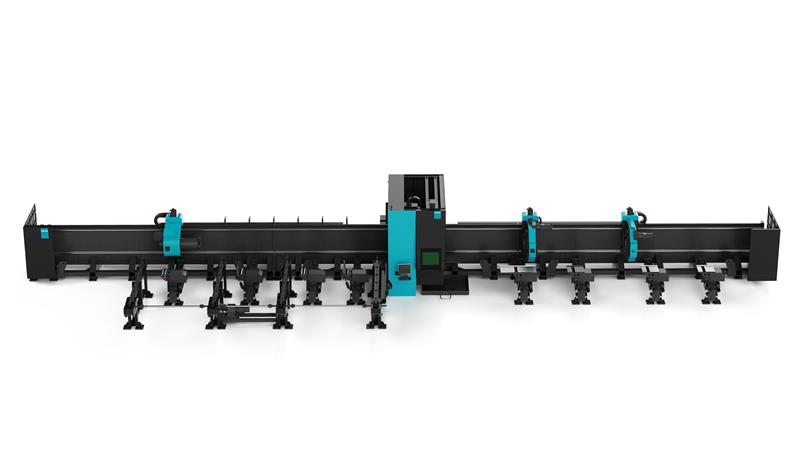

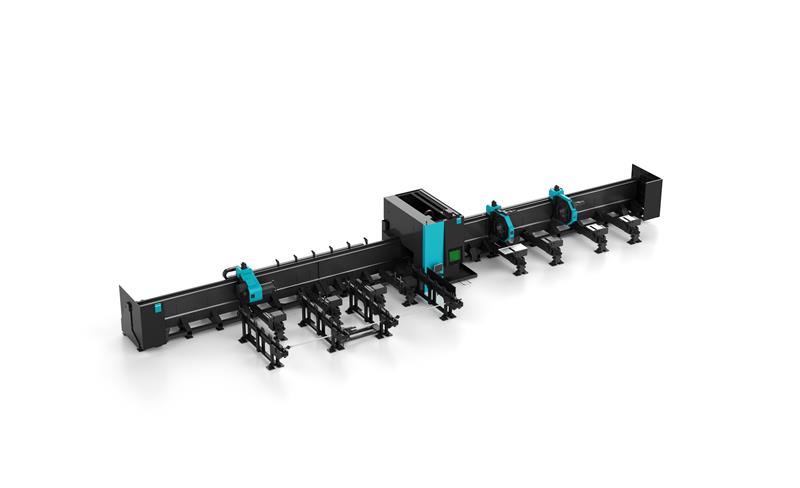

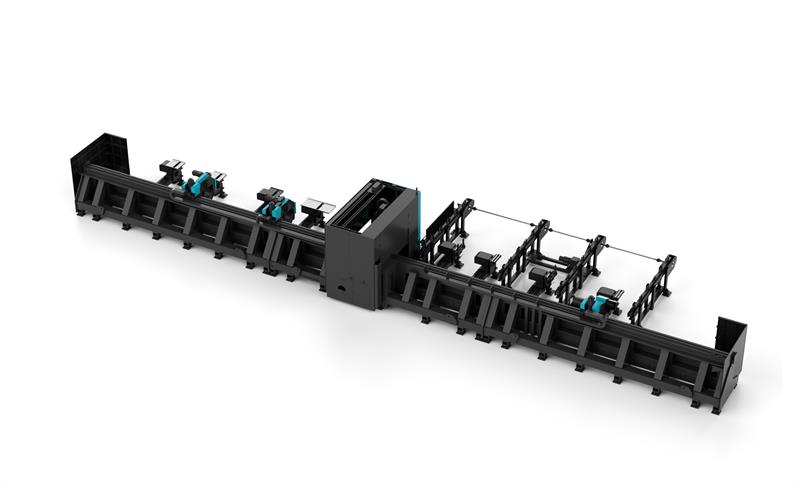

D-Tube 520 Professional fiber tube laser cutting machine is developed for the section bar and tube cutting market. It adopts the latest independent research and development bus type CNC laser tube cutting system to achieve tube supporting device, chuck and other control. The solution provided is designed to meet cutting requirements for various materials, including carbon steel, stainless steel, and aluminum alloy. It excels in cutting circular tubes, square tubes, U-shaped grooves, universal beams, profiled tubes, and other tube shapes. It offers precise and efficient cutting, hole-opening, and profile cutting capabilities.
Product Features
01
Segmental type unloading, various methods for different pipe lengths.
02
Multi-point heavy-duty centering chuck, single material heavy-duty up to 1.5 tons.
03
Capable of processing super heavy-duty pipes with a diameter of up to 520mm.
04
Fixed Bridge Gantry with stable operation and higher precision of the cutting head.
05
Multi-chuck automatic direction change, to achieve cutting "zero" tail material, saving material cost.
06
High negative pressure dust extraction function, better dust extraction effect, remove residue and protect the chuck.
Technical Parameter
Number of chucks3
4
Round tube (mmΦ50-Φ510
Square tube(mm)□35*35-□510*510
Theoretical maximum chuck load2000kg
Loading length12m12m
Unloading length6m9m
12m9m
12m
X/Y-axis positioning accuracy±0.05mm/m
X/Y-axis repeated positioning accuracy ±0.03mm/m
B-axis rotation repeated positioning accuracy≤ 5 arc minutes
Bevel cutting functionOptional
