series DNE Mechanical C-Bend

D-Roller

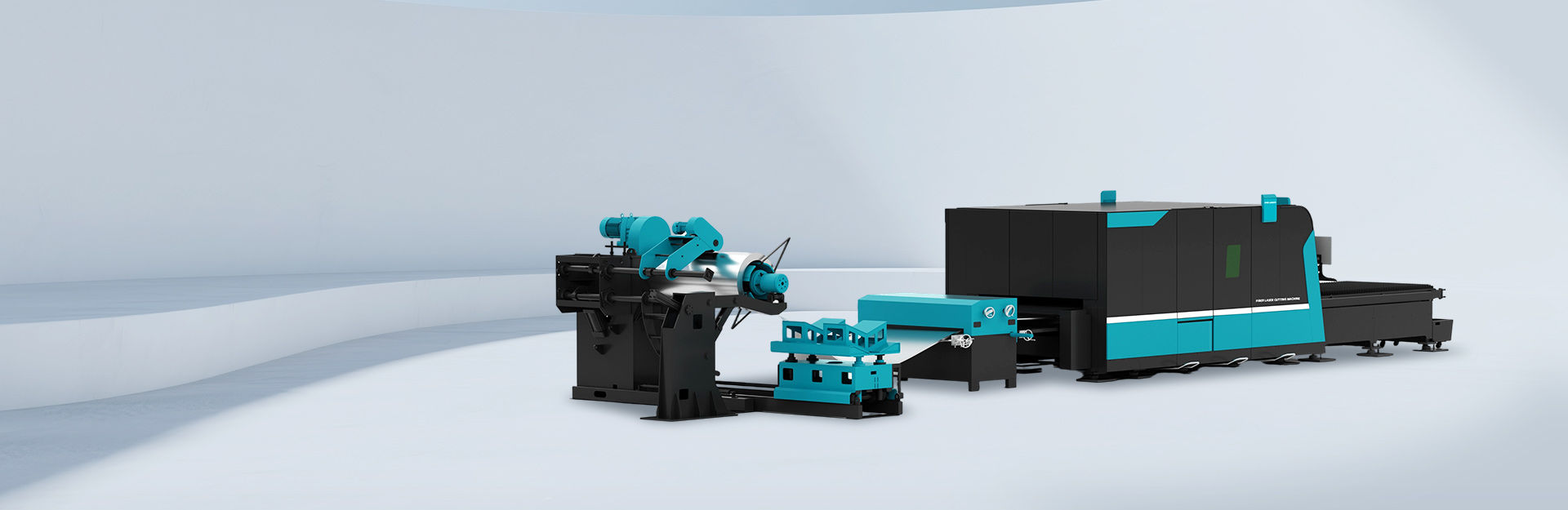

Fiber Laser Cutting Machine with Coiler and Leveling System

Add to List

Product Comparison

Home·Products·D-Roller

Product Description Product Features Technical Parameter Related Products

Add to List

Product Comparison

Get a Quote

Product Description

DNE LASER specializes in providing customized solutions for fiber laser cutting machines and their auxiliary equipment. Whether it's addressing specific processing requirements for sheet cutting, achieving precise positioning and displacement of irregular parts, or ensuring efficient large-scale production. Coiler and leveler device can realize automatic leveling of coiling, accurate feeding, stable and reliable operation; Automatic production line helps to increase production capacity and save cost.

Product Features

Imported electronic parts with long life and few failures.

It is suitable for loading and correcting various metal materials with good effect.

After the material is corrected, it is smooth without indentation and does not damage the surface of the material.

The roller is made of hollow bearing steel material, after intermediate frequency treatment (surface hardness to 60°), it is hard chromed and then finely ground, with high hardness, excellent wear resistance and extremely long life.

Technical Parameter

Feeding width	100-1500mm
Material thickness （Choose one out of four）	0.3-1.0 mm(Galvanized sheet, ordinary carbon steel)； 0.3-0.5mm(Stainless steel)
	0.5-2.0 mm(Galvanized sheet, ordinary carbon steel)； 0.5-1.5mm(stainless steel
	0.8-3.0 mm(Galvanized sheet, ordinary carbon steel)； 0.8-2mm(stainless steel)
	1.0-5.0 mm(Galvanized sheet, ordinary carbon steel)； 1.0-3.5mm(stainless steel)
Feeding length	9999.99mm（ Digital adjustable）
Leveling roll	Upper 5 Lower 6 (Hard-chrome-plated) -11 rolls
Leveling roll	Upper 7 Lower 8 (Hard-chrome-plated) -15 rolls
Leveling flatness	11-roll：≤±1.5mm/㎡
Leveling flatness	15-roll： ≤±1.0mm/㎡
Feeding accuracy	±0.5mm/m
Feeding speed	24m/min Maximum feeding speed
Maximum material width	1500mm
