D-Tube F

Fiber Tube Laser Cutting Machine

Add to List

Product Comparison

Home·Products·D-Tube F

Product Description Product Features Technical Parameter Related Products

Add to List

Product Comparison

Get a Quote

Product Description

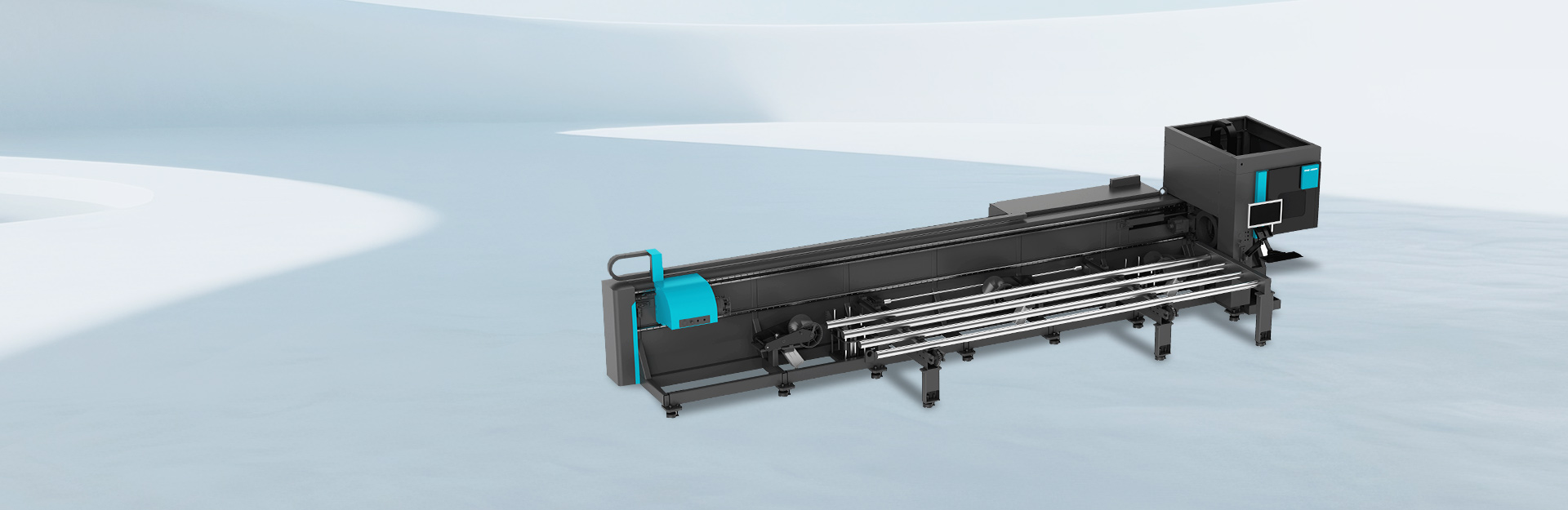

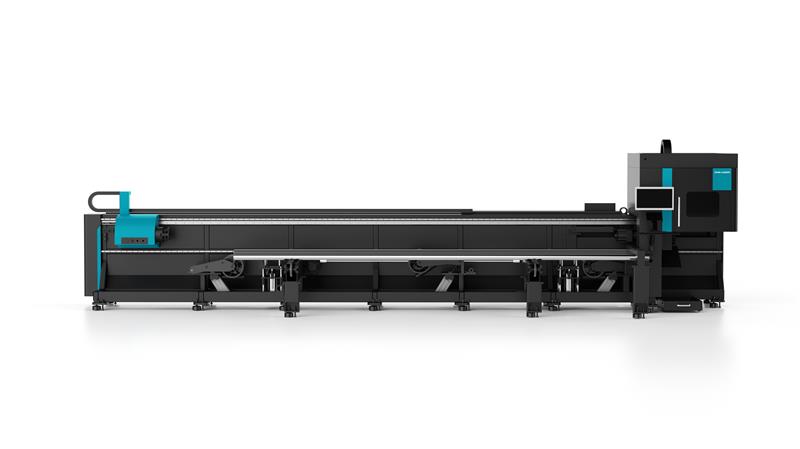

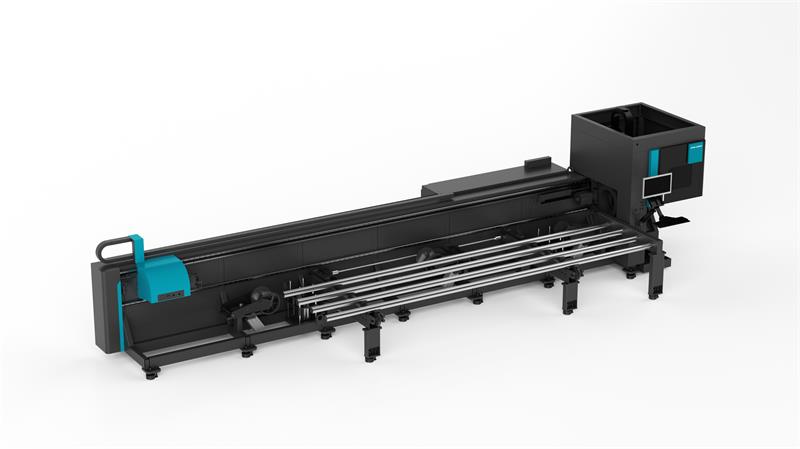

DNE LASER D-Tube F fiber tube laser cutting machine is an innovative product specifically developed for the profile and tube cutting market. It features precise control of tube support devices and chucks, delivering exceptional performance. The machine is versatile in cutting materials including carbon steel, stainless steel, aluminum alloy, and more. It can handle various profiles such as round tubes, square tubes, U-channels, I-beams, and custom-shaped tubes for cutting, hole-making, and contour cutting. It is a highly automated, efficient, and cost-effective dedicated tube-cutting equipment.

Product Features

Integrated power cabinet design ensures rapid deployment, instant power-on operation, and maintenance-friendly accessibility.

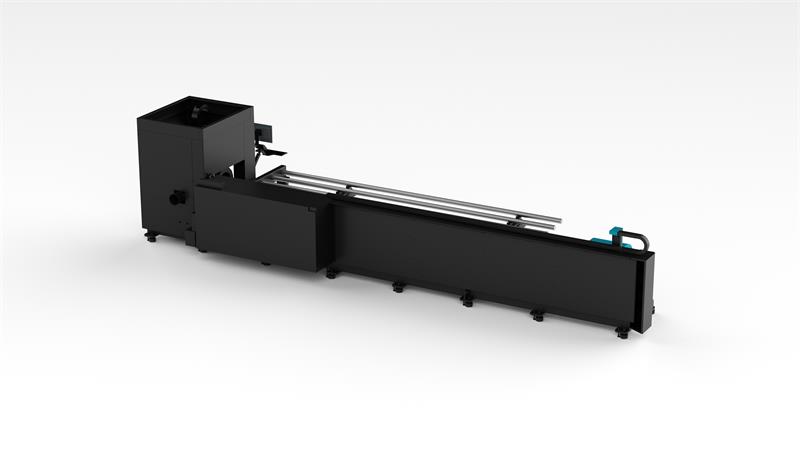

Side-mounted base frame with low center of gravity and triangular structure ensures stability. Easy material loading and flexible integration.

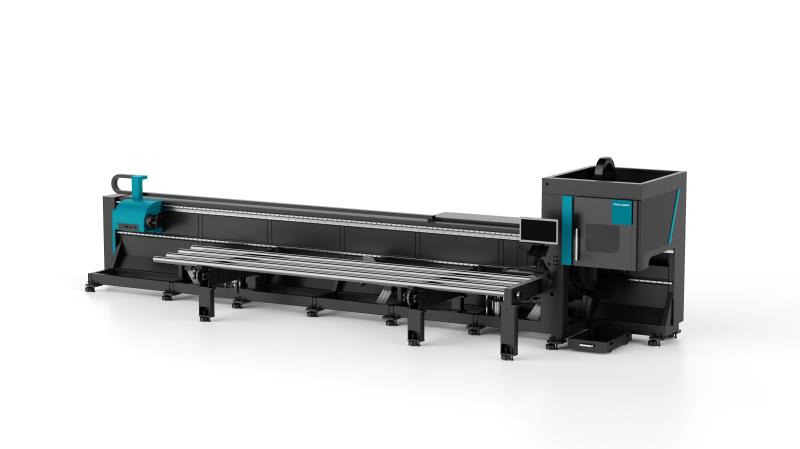

Optional large unloading platform with 2000 mm space and tipping bucket design for fast and easy unloading, simplifying material collection and separation.

Precision Centering & Auto-feeding System: Standard-equipped alignment mechanism with multi-tube compatibility.

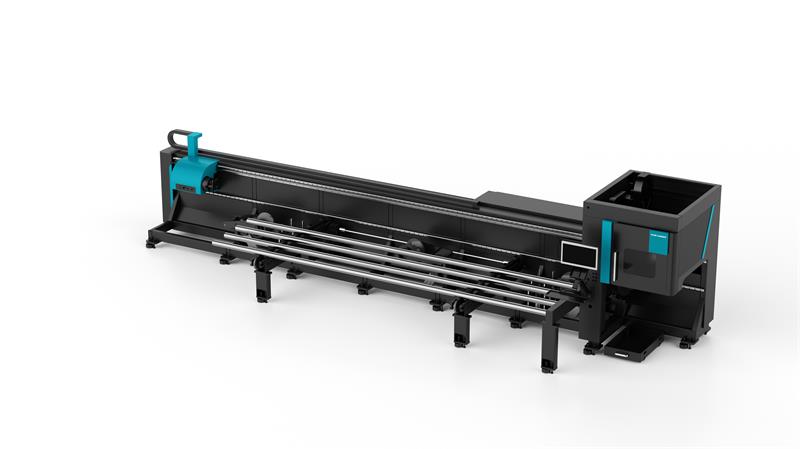

Automatic and continuous loading of up to 5 pipes at a time significantly reduces manual labor and boosts efficiency.

120 RPM chuck rotation synchronized with 100 m/min Y-axis traversal enables unmatched processing speeds for production maximization.

Proprietary chuck-adjacent cutting head design with front chuck clearance control achieves industry-leading 60mm residual material length. Maximizes material utilization while boosting throughput.

Technical Parameter

Number of chucks	2
Model	120	240	360
Round tube (mm)	Φ15-Φ110	Φ15-Φ230	Φ20-Φ350
Theoretical maximum chuck load	100kg	300kg	600kg
Loading length	6.5m	6.5m	6.5m
Unloading length	2m	2m	2m
X/Y-axis positioning accuracy	±0.05mm/m
X/Y-axis repeated positioning accuracy	±0.03mm/m
B-axis rotation repeated positioning accuracy	≤ 5 arc minutes
Bevel cutting function	Optional
