D-Tube-240

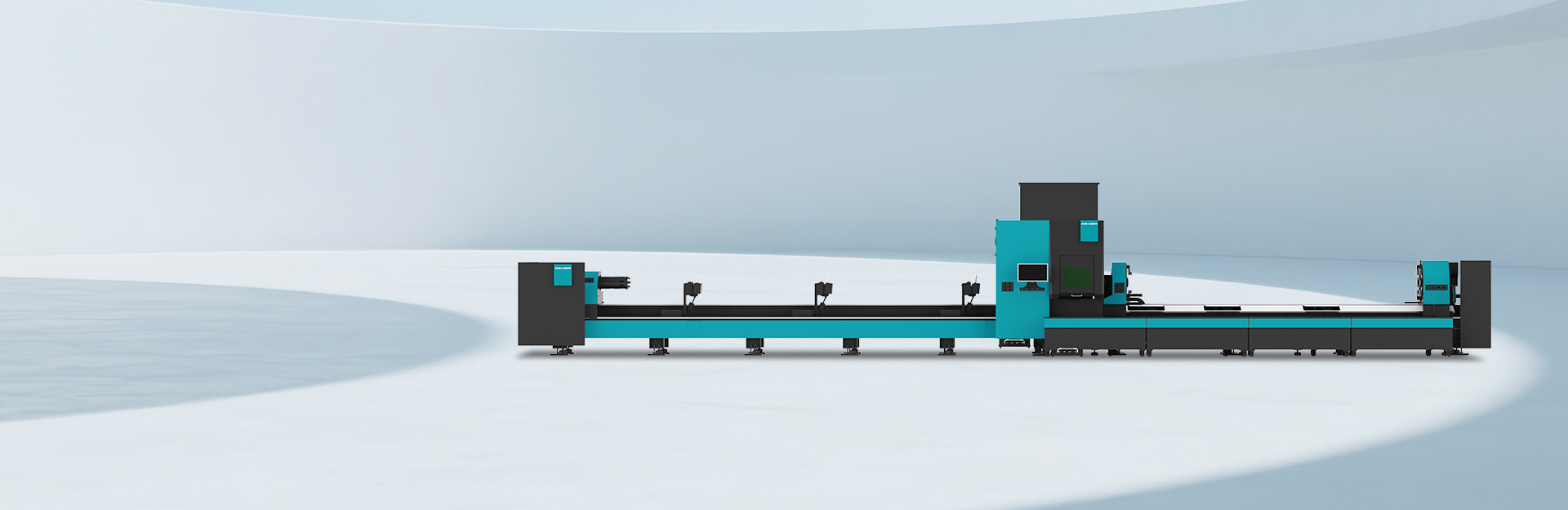

Fiber Tube Laser Cutting Machine

Add to List

Product Comparison

Home·Products·D-Tube-240

Product Description Product Features Technical Parameter Related Products

Add to List

Product Comparison

Get a Quote

Product Description

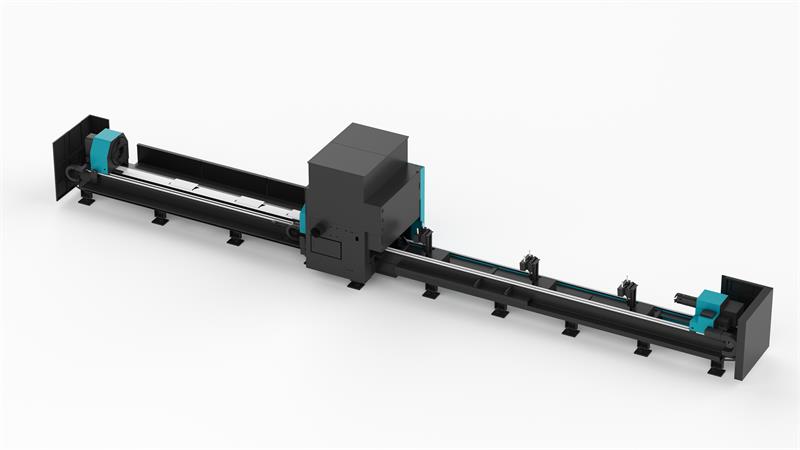

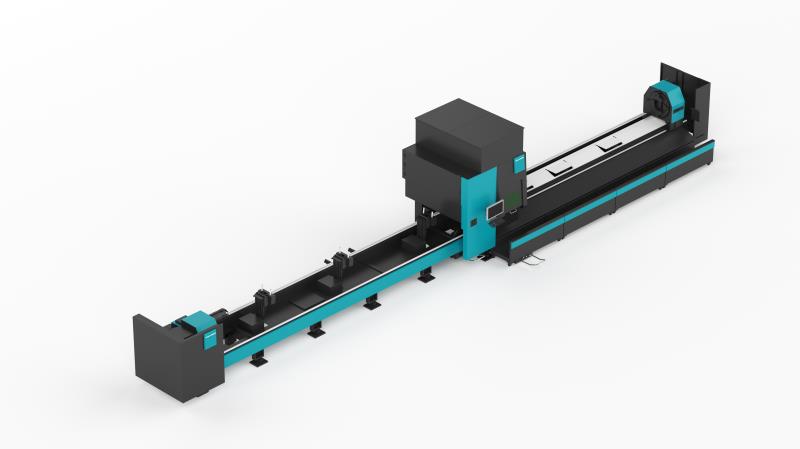

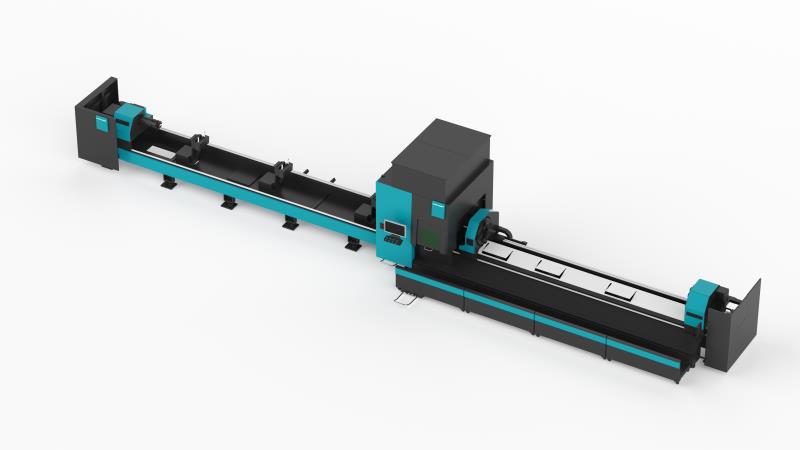

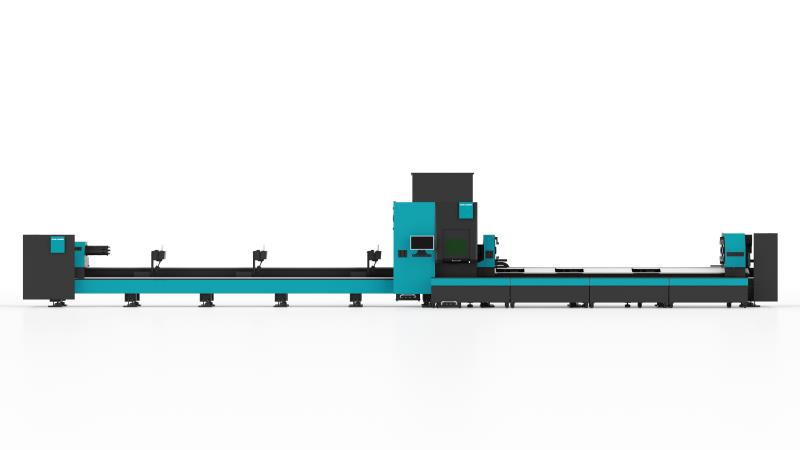

DNE LASER D-Tube 240 fiber laser tube cutting machine is a product developed for the profile and pipe cutting market. It adopts the latest independent research and development bus type CNC laser pipe cutting system to achieve pipe support device, chuck and other control; Can meet the carbon steel, stainless steel, aluminum alloy material such as circular tube, square tube, U-shaped groove, I-beam, Profiled tube and other pipe profile cutting, hole cutting, profile cutting. It is a high degree of intelligent automation, high efficiency, cost-effective dedicated pipe cutting equipment.

Product Features

Three chucks through the chuck design combination, multi-chuck synergistic stable clamping support, up to 1200Kg load bearing

Multi-chuck synergistic cutting can easily achieve the goal of zero tail material, improve the utilization rate, and realize green savings.

One-key loosening and clamping, automatic centering, large and constant clamping force, no loosening or slipping of the heavy tube, full sealing design of the chuck, blocking dust and improving the service life of the chuck.

Chuck seat adopts whole plate welding structure, rough machining by high temperature annealing, high-precision molding, good rigidity, light weight, good dynamic performance.

The cutting head adopts capacitive sensors with high sensing accuracy, sensitive response, stable and reliable performance.

Adoption of rack and pinion, high-precision linear guide, stable and accurate transmission, equipped with semi-automatic loading and unloading device to improve the productivity of the machine tool.

X, Y, Z linear axes, U-axis chuck rotary axis and bevel A and B rotary axes are servo motors with high precision, high speed, high torque, stable and durable performance, which ensures the high speed and acceleration of the whole machine.

Technical Parameter

Number of chucks	2		3
Round tube (mm)	Φ15-Φ230
Square tube(mm)	□1515-□230230
Theoretical maximum chuck load	300kg
Loading length	6m	6m		9m
Unloading length	2m	6m		6m	9m
X/Y-axis positioning accuracy	±0.05mm/m
X/Y-axis repeated positioning accuracy	±0.03mm/m
B-axis rotation repeated positioning accuracy	≤ 5 arc minutes
Bevel cutting function	Optional
